F12

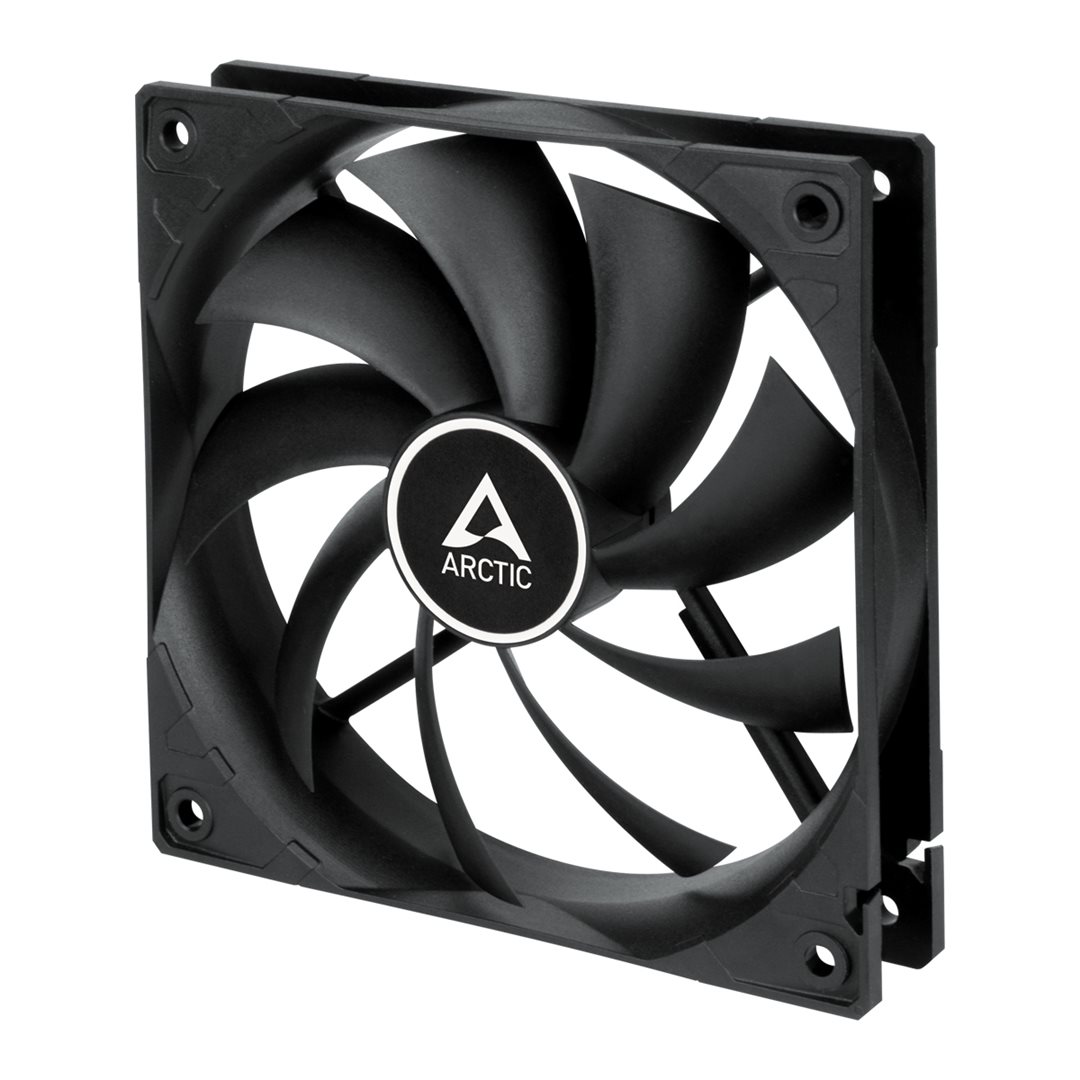

120 mm Standard Case Fan

LONG SERVICE LIFE

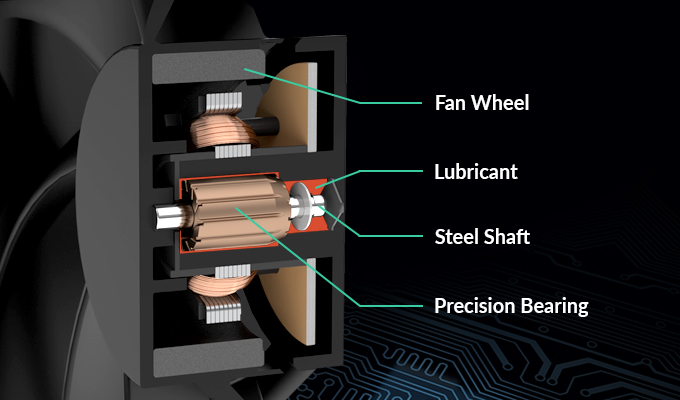

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

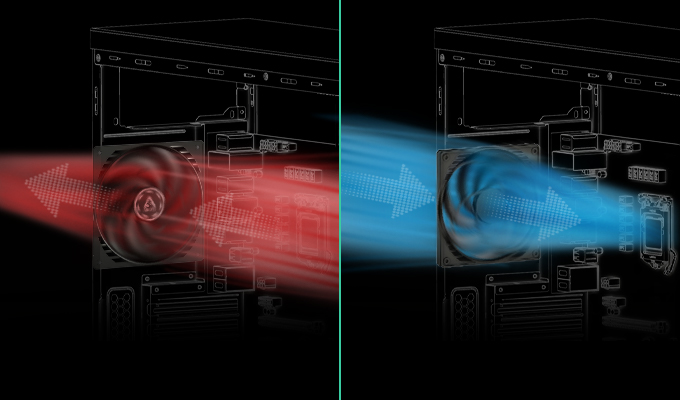

TWO WAY INSTALLATION
Blow warm air out of the case

Draw cool air into your case

General data

Performance

Fan Speed: 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1.00 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C

Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current/ Voltage: 0.12 A / 12 V
Cable Lenght: 400 mm

Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g

Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.13 kg
, ,
