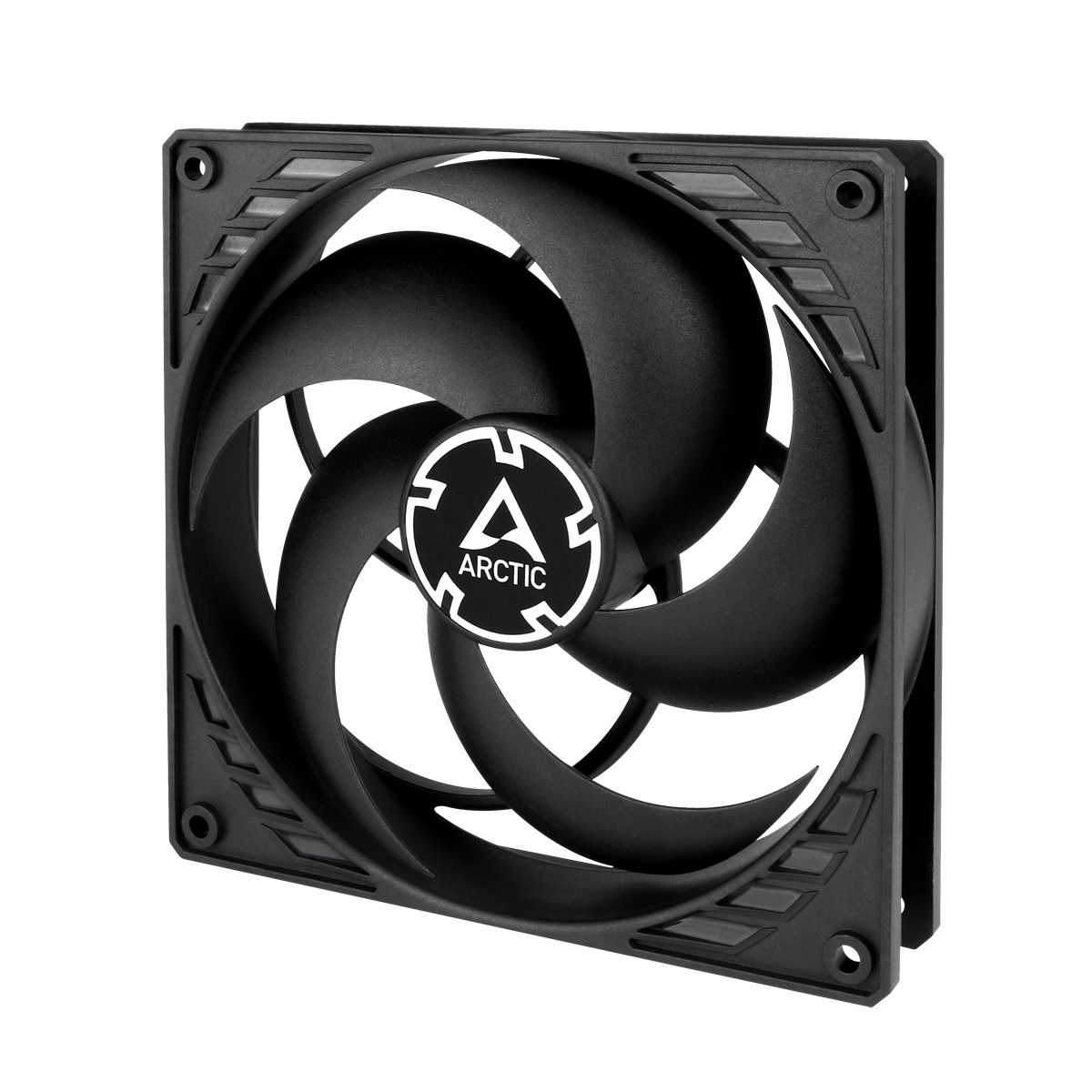

Nová série ventilátorů P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 PWM PST CO je 140x140x25mm s 200-1700 otáčkami za minutu řízenými PWM 0 dB fan módem, vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone. Speciální ložisko a motor navržený pro nepřetržitý provoz.

Optimised for Static Pressure
During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.

More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

200 to 1700 RPM regulated via PWM
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

0 dB Mode
The P14 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

Performance
Fan: 140 mm, 200 – 1 700 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM
Air Flow: 72.8 CFM (123.76 m3/h)
Noise Level: 0.3 Sone (@ 1 700 RPM)
Static Pressure: 2.4 mm H2O

Electrical Characteristics
Typical Voltage: 12 V DC
Start-up Voltage: 3.9 V
Cable Length: 400 mm
Sub PST Cable Length: 50 mm
Voltage Current 12 V DC (Norminal) 0.12 A

Connection Motherboard: + 12 V DC PWM control signal 4-pin connector + 4-pin socket
, ,
