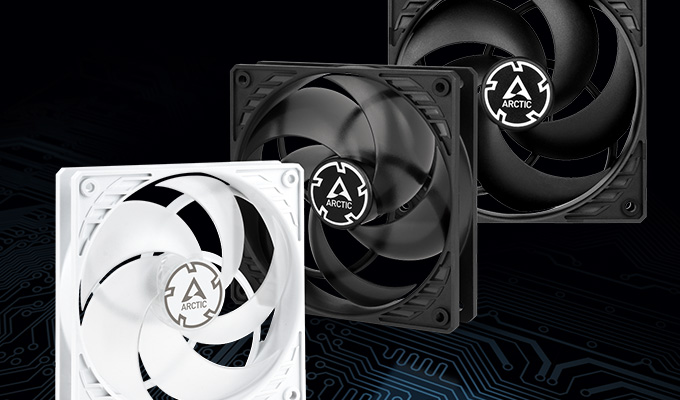

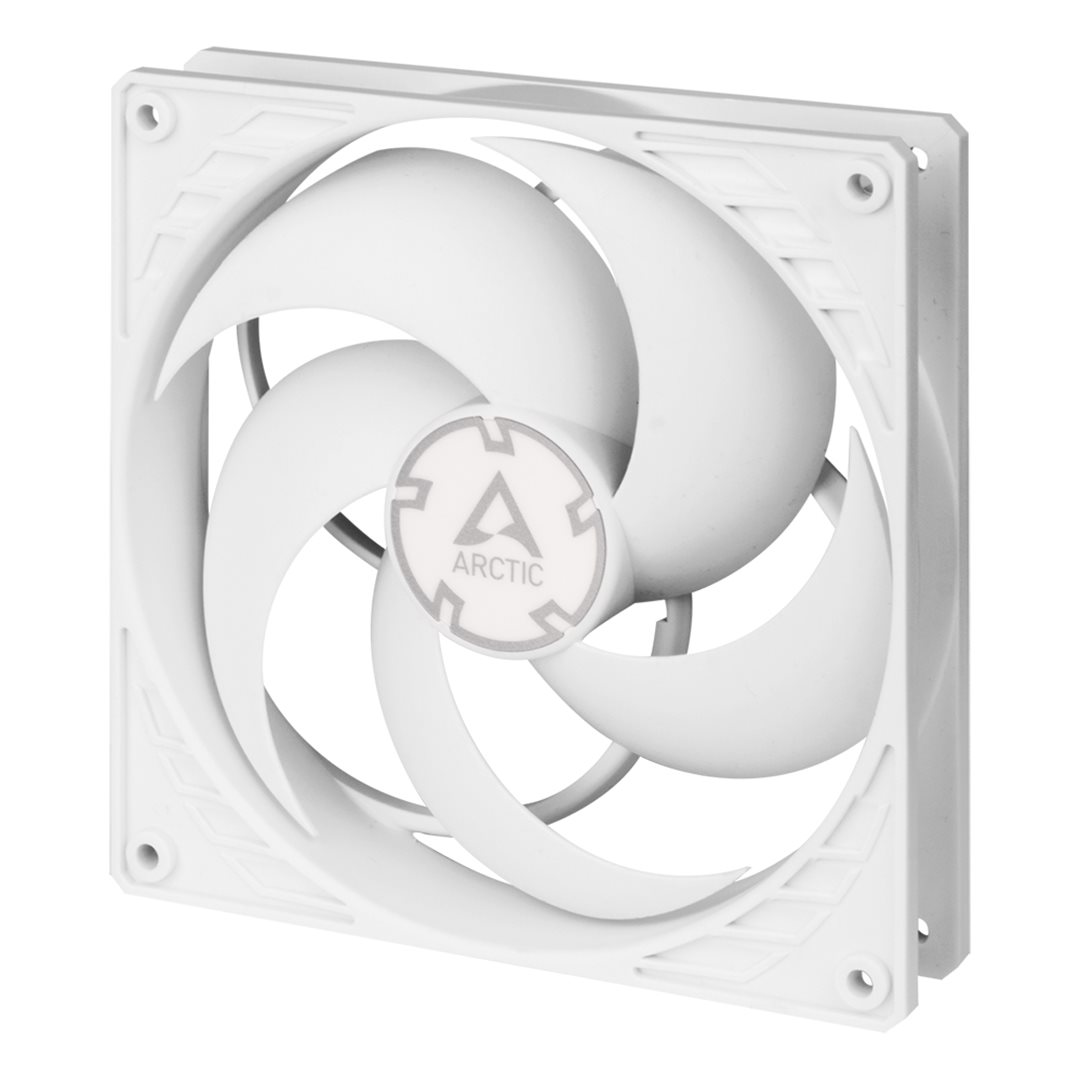

P14 PWM - Pressure-optimised 140 mm Fan with PWM

OPTIMISED FOR STATIC PRESSURE
During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.

MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

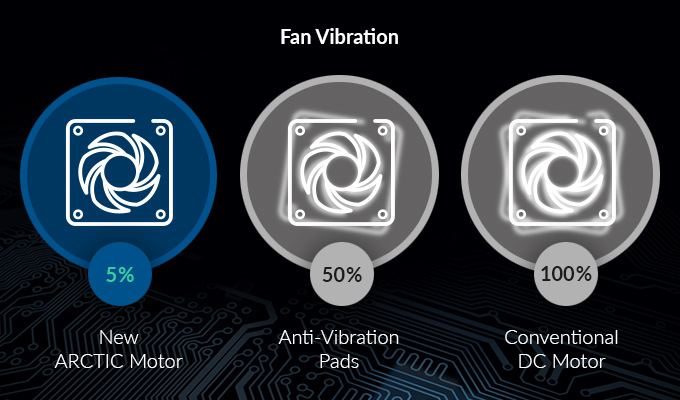

MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

EXTENDED LIFE SPAN

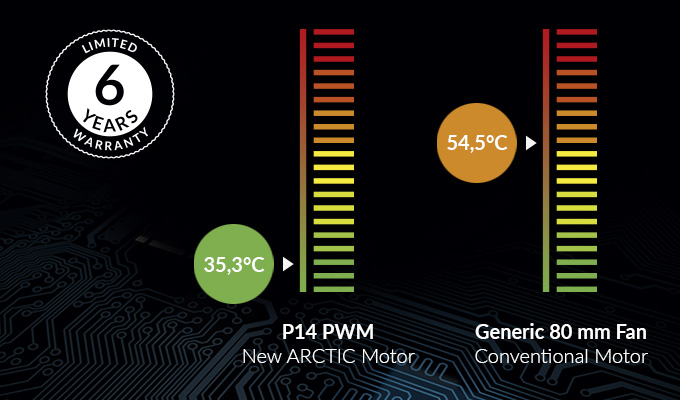

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

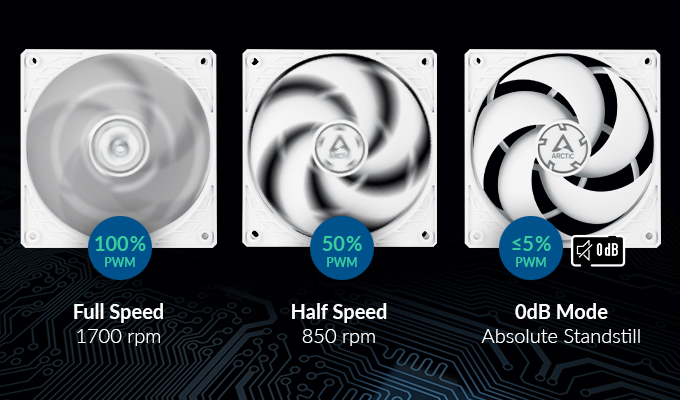

200 TO 1700 RPM REGULATED VIA PWM

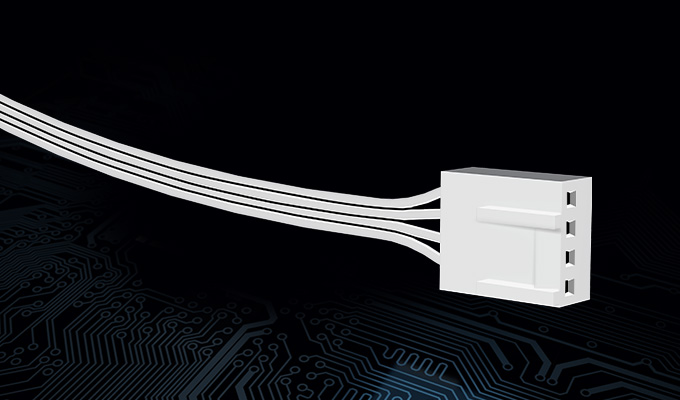

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

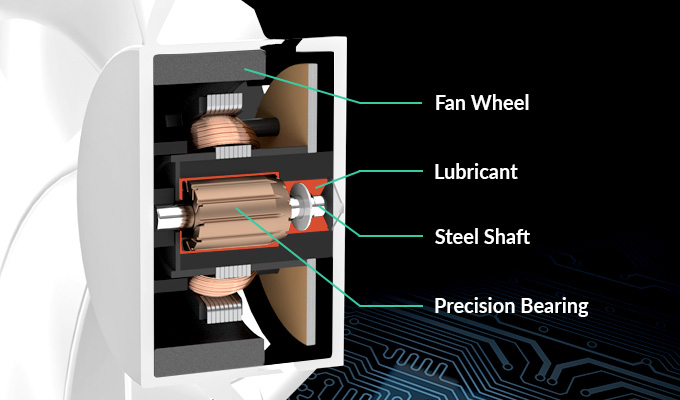

HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

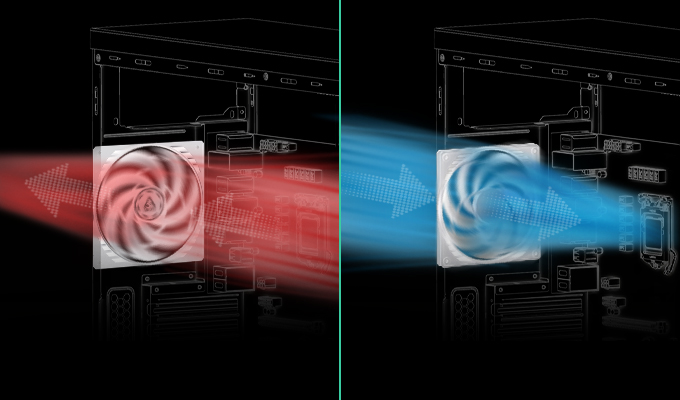

TWO WAY INSTALLATION
- Push warm air out of the case
- Pull cool air into your case

Performance
Fan Speed: 200 - 1700 rpm
Airflow: 72.8 CFM/ 123.76 m3/h
Static Pressure: 2,40 (mm/H2O)
Noise Level: 0.3 Sone

Fan
Fan Frame: Standard
Controll Typ: PWM
Connector: 4-Pin Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current: 0.12 A
Cable Lenght: 400 mm

Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 194 g

Packaging
Width: 143 mm
Height: 143 mm
Length: 29 mm
Weight: 0.233 kg
, ,
