ROG STRIX B850-A Gaming WIFI

* ATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850 Chipset

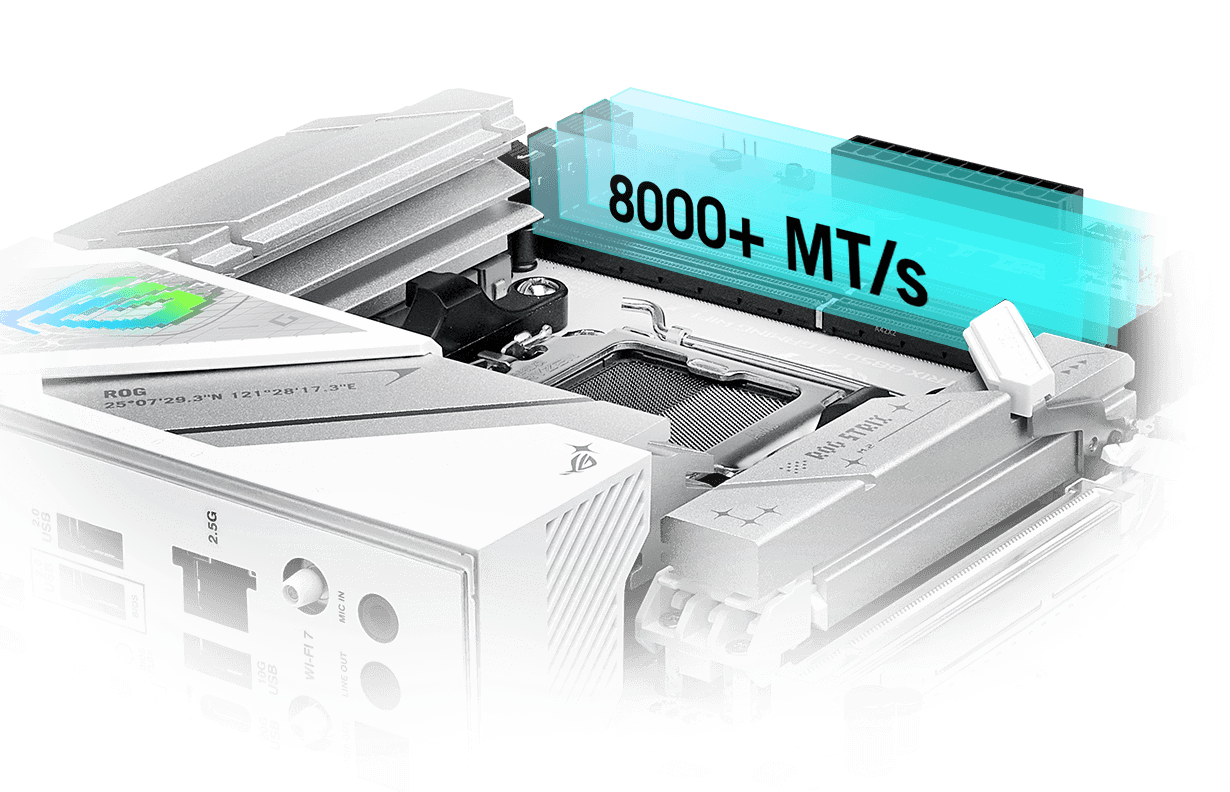

Paměť: 4 x DIMM slots, max. 192GB, DDR5
*Podporuje až 8000+MT/s(OC) s procesory Ryzen™ řady 9000 a 8000 a 7000 ECC a Non-ECC, nevyrovnaný modul DIMM

Grafické porty:
1 x DisplayPort
1 x HDMI™ port

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
*1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen™ 8000 Series Desktop Processors
*1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode)
AMD B850 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)

Úložný prostor:

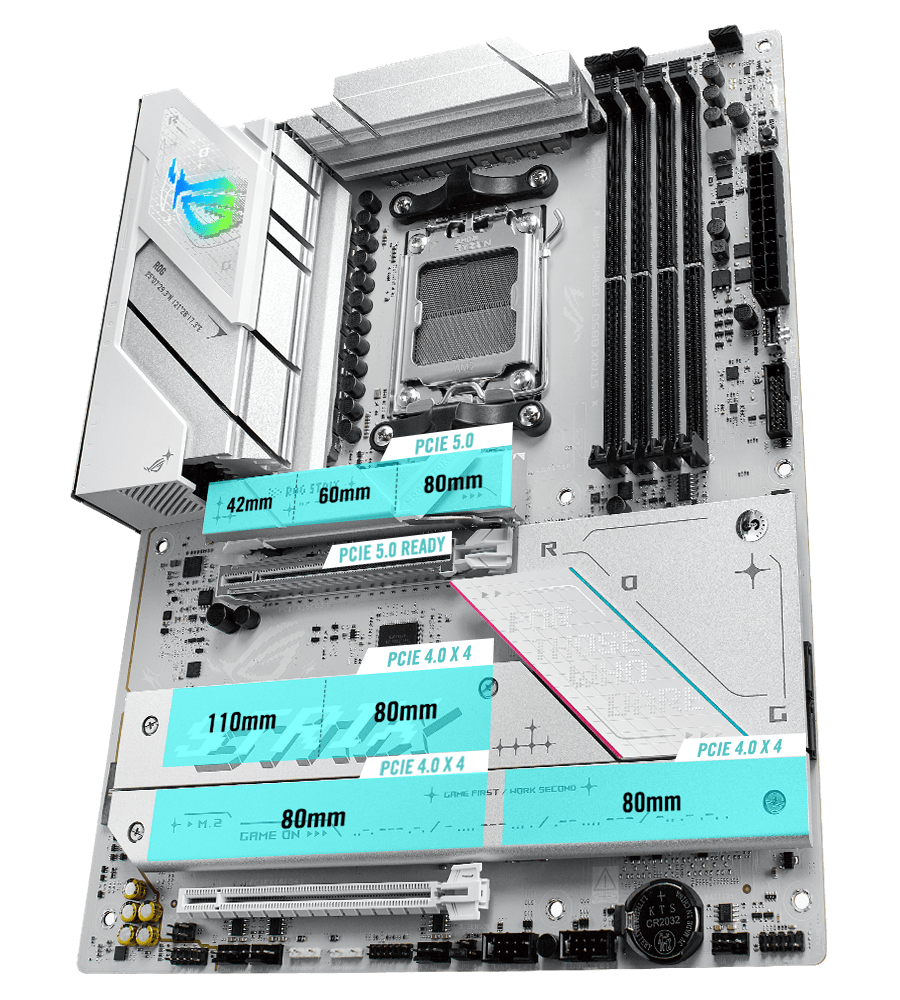

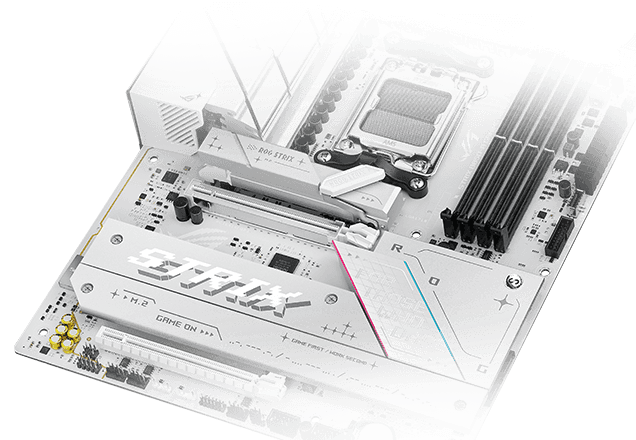

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 9000 Series Desktop Processors
*M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
*M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
*M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
*M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset
*M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)***
*M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
*2 x SATA 6Gb/s ports

Ethernet:
*1 x Intel® 2.5Gb Ethernet
*ASUS LANGuard

Připojení a bluetooth:
*Wi-Fi 7
*2x2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band**
*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
*Bluetooth® v5.4***

USB:
Zadní USB (Celkově 10 portů)
*1 x USB 20Gbps port (1 x USB Type-C®)
*3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
*4 x USB 5Gbps ports (4 x Type-A)
*2 x USB 2.0 ports (4 x Type-A)
Přední USB (Celkově 7 portů)
*1 x USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
*SupremeFX Shielding Technology
*Savitech SV3H712 AMP
*Rear optical S/PDIF out port
*Premium audio capacitors
*Audio cover

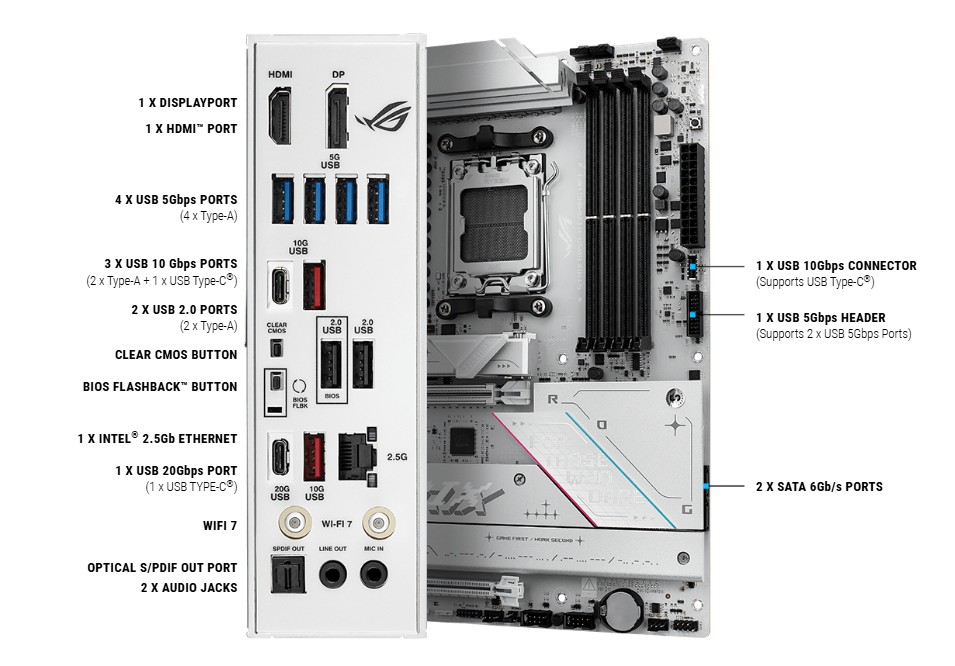

Vstupy/výstupy zadního panelu:
*1 x USB 20Gbps port (1 x USB Type-C®)
*3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
*4 x USB 5Gbps ports (4 x Type-A)
*2 x USB 2.0 ports (4 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Intel® 2.5Gb Ethernet port
*2 x Audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack™ button
*1 x Clear CMOS button


Interní vstupy/výstupy:

Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers

Napájení:
*1 x 24-pin Main Power connector
*2 x 8-pin +12V CPU Power connector

Úložiště:
*4 x M.2 slots (Key M)
*2 x SATA 6Gb/s ports

USB:
*1 x USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:
*3 x Addressable Gen 2 headers
*1 x CPU Over voltage jumper
*1 x Front Panel Audio header (F_AUDIO)
*1 x Power button
*1 x 10-1 pin Front System Panel header
*1 x Thermal Sensor header
*1 x Thunderbolt™ (USB4®) header


Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*1 x Cable ties package
*1 x M.2 Q-Latch package
*1 x M.2 Q-Slide package
*1 x ROG key chain
*1 x ROG Strix stickers
*4 x M.2 rubbers
Instalační média:
*1 x USB drive with utilities and drivers
Dokumenty:
*1 x Quick start guide
, ,
