Extend high-quality digital graphics, USB peripherals, audio and serial up to 140 metres.

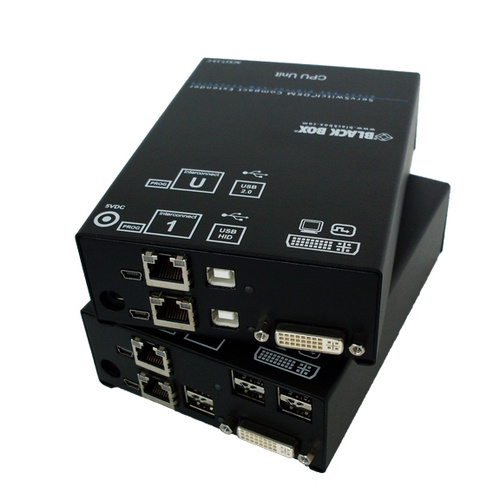

Now you can have KVM control with high-resolution digital graphics wherever you need it! The CATx DKM Compact Extenders allow you to extend one or two single-link DVI-D channels as well as USB keyboard and mouse at resolutions of up to 2048 x 1152 @ 60 Hz.

Excellent DVI-D video quality
Thanks to the digital transmission of the video signal without any losses in the quality, images are as sharp as if they were directly attached to the workstations. The enhanced video compression algorithms support 24-bit color depth for smooth colour gradients up to resolutions of 2048 x 1152 @ 60Hz over the full distance. Even interlaced digital video such as 1080i is now supported.

Distances
The CATx DKM Extenders transmit signals up to 140 meters over 24 AWG solid CAT5e/6/7cable. There are also fibre options available extending the signals up to 800 meters over multi-mode cable, or use single-mode to send crisp, clear, high-resolution video up to 10 kilometers away!

USB HID
The CATx DKM Compact Extender support USB HID ports for keyboard and mouse and equal HIDs. True USB emulation allows you to attach a wide variety of feature rich USB keyboards and mouse with full support of their extended functions.

Transparent USB 2.0
DKM Compact Extenders with transparent USB 2.0 support allow the connection of all types of USB 2.0 devices (without restriction).
Use ACX1K 13-C for USB 2.0 data transfer with high-speed USB up to 480 Mbps. Each USB 2.0 port provides a maximum current of 500 mA (high power). Use these modelto expand your system with up to four USB 2.0 devices like scanners, hard disks, memory sticks, printers or others at the remote end of your system.
ACX1K14-C supports two embedded fullspeed USB 2.0 ports up to 36Mbps. Use this model to extend SL DVI, full-speed USB 2.0, Audio and serial data over a single CATx cable!

RS232/V.24 and audio
The models with serial and audio transmit these data along with the video signals. With analog audio support you may transmit acoustic alarms from your server or music in CD quality.

The transparent RS232/V.24 transmission (6 wires) with up to 19.2Kbps allows you to connect touch screens, graphic tablets as well as other serial equipment to your system.

Multiple DVI-D video heads
The Compact DKM Extenders are available as single- or dual-head DVI-D versions. Choose the dual video models when you have multi-video applications: you will save both space and money.

Analogue Video Formats
Besides the DVI-D channels, you may expand your system also with VGA soucres. The VGA video option is fully down and up scalable up to 1920 x 1200. Using the included remote control scaling becomes easy at both ends if the extension. The output on the console side is DVI-D. Use the video converter AC1038A, to connect VGA-monitors.

Local Monitoring
The optional DKM video splitter cable (ACXSPL12) provides you with a connection for a local DVI-D display. If you want to connect also a local keyboard and mouse your O/S must support multiple keyboards and mice.

19"and DIN-rail mounting options
These extenders are also ideal for 19" rack or DIN-rail mounting. Please order the corresponding kits separately.

Integration with DKM switching system
The DKM compact extenders perfectly work together with the ServSwitch DKM FX Switching System (ServSwitch DKM FX and ServSwitch DKM FXC). These digital switches not only extend your KVM signals, they also allow high-end, fast switching of video and peripheral signals in a freely scalable matrix with full management.

Whichever extender is right for your application, you can be sure that our highly effective compression algorithms will deliver great quality graphics with smooth picture movement. The DKM KVM Extenders can be used in a variety of applications: digital signs, touch screens, POS, industry, graphics, food production, controll centers or even airports. It can also be used for applications where you need to separate your computer from your user station but still need perfect video quality.


Distances — up to 140 m

Resolutions —
DVI-D up to 2048 x 1152 at 60Hz, up to 1280 x 1024 at 75Hz, 24-bit color depth,
VGA scalable up to 1920 x 1200

Connectors —
transmitters:
All: (1) DVI-I, (1) USB Type B, (1) RJ45 CATx, (1) miniUSB Type B (flash upgrade); (1) power
ACX1T-11V-C also: (1) DVI-I for DVI or VGA Video in, IR-Sensor
ACX1T-13-C also: (1) USB Type B
ACX1T-12A-C also: (1) USB Type B, (1) DB9 serial, (2) 3.5mm audio jacks,
ACX1T-12D-C also: (1) USB Type B, (1) Toslink, (1) miniXLR, (1) chinch
ACX1T-14A-C also: (1) USB Type B, (1) DB9 serial, (2) 3.5mm audio jacks,
ACX1T-22-C also: (2) DVI-I, (1) RJ45 CATx, (1) USB Type B
receivers:
All: (1) DVI-I, (2) USB Type A, (1) RJ45 CATx, (1) miniUSB Type B (flash upgrade); (1) power
ACX1R-11V-C also: (1) IR sensor
ACX1R-13-C also: (4) USB Type A for USB 2.0, (2) USB Type A for USB HID
ACX1R-12A-C also: (2) USB Type A (USB HID), (1) DB9 serial, (2) 3.5mm audio jacks,
ACX1R-12D-C also: (2) USB Type A for HID, (1) Toslink, (1) miniXLR, (1) chinch
ACX1R-14A-C also: (2) USB Type A (USB 2.0), (1) DB9 serial, (2) 3.5mm audio jacks,
ACX1R-22-C also: (2) DVI-D, (1) RJ45 CATx, (2) USB Type A

Power — local and remote unit: 90 to 240 VAC, 47 to 63 Hz, auto sensing, external, with IEC 320-connector and cord

Size —
Single platine versions: 103W x 143D x 29H mm
Dual platine versions: 103W x 143D x 43H mm



Package Contents

All:
(1) Transmitter
(1) Receiver
(2) Power Supplies
(2) Power Cords
(1) DVI-D Cable
(1) USB Cable
Quick Starter Guide

ACX1K-13-C also: (1) USB Cable
ACX1K-12A-C, ACX1K-14A-C also: (1) USB Cable, (1) DB9 Cable, (2) 3.5mm Audio Cable
ACX1K-12D-C also: (1) USB Cable, (1) Toslink Cable, (1) Cinch Cable
ACX1K-22-C also: (1) USD Cable, (1) DVI-D Cable
, ,
