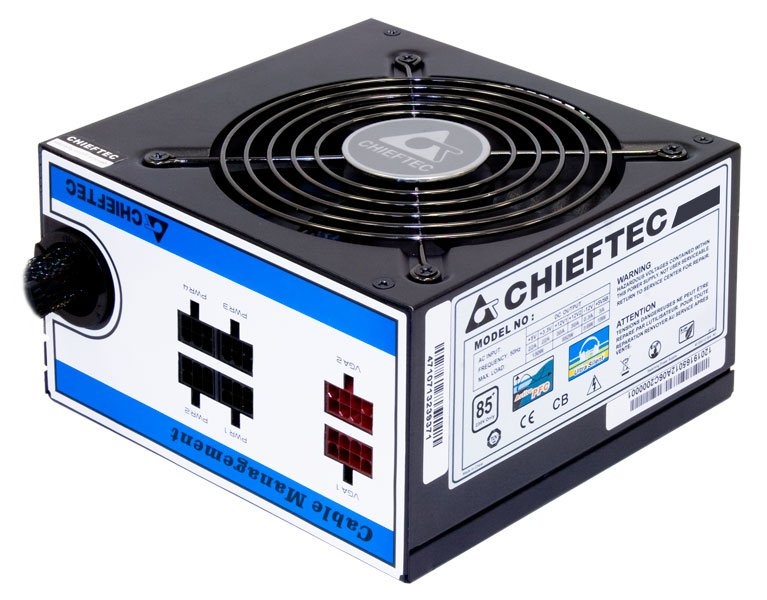

CHIEFTEC zdroj A80 Series, CTG-650C, 650W, 12cm fan, Active PFC, Modular, Retail, 85+
http://www.chieftec.eu/en/psus/a-80-series/ctg-650c.html
| Performance
| |
| AC Input:
| 230V / 6A
|
| Frequency:
| 50 Hz
|
| +5V:
| 22A
|
| +3,3V:
| 22A
|
| +5V & +3,3V combined:
| 130W
|
| +12V 1:
| 30A
|
| +12V 2:
| 30A
|
| +12V 1 & +12V 2 combined:
| 552W
|
| +12V 3:
| N/A
|
| +12V 4:
| N/A
|
| +12V 3 & +12V 4 combined:
| N/A
|
| P.F.:
| >0,9
|
| -12V:
| 0,3A / 3,6W
|
| +5VSB:
| 3,0A / 15W
|
| Maximum Load:
| 650W
|
| Connectors
| |
| Native cable:
| |
| 20+4PIN:
| |
| ===450mm===[24PIN]
| |
| 8PIN EPS / 4PIN 12V:
| |
| ===550mm===[8PIN EPS]===150mm===[4PIN 12V]
| |
| Modular cable:
| |
| SATA:
| |
| ===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
| |
| SATA:
| |
| ===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
| |
| Molex / Floppy:
| |
| ===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
| |
| Molex / Floppy:
| |
| ===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
| |
| 8PIN PCIe (6+2):
| |
| ===450mm===[PCIe]
| |
| 8PIN PCIe (6+2):
| |
| ===450mm===[PCIe]
|
, ,
