CHIEFTEC zdroj SFX CSN-650C 650W, 80+ Gold,full range, cable management

Name: CHIEFTEC zdroj SFX CSN-650C 650W, 80+ Gold,full range, cable management
Brand: Chieftec
SKU: i8_1022548
Price: 2394 CZK
Availability: InStock

Výrobce:Chieftec

Kód produktu:i8_1022548

Part number:CSN-650C

EAN:4710713235779

Záruka:24 Měsíc(ů)

Dostupnost:

k odeslání: 4 ks

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

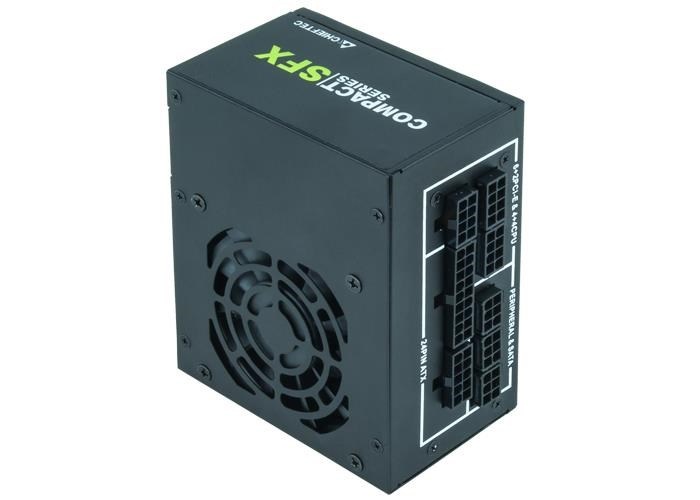

This small SFX PSU surprises with massive power and an incredible power output of 650 watts. You won’t have unnecessary cables anymore as it comes with a cable managment and 80plus gold certification. The 80mm Ultra Silent fan is perfect to cool down the power supply.

SPECIFICATIONS:

Performance

AC Input:	100V-240V / 6A
Frequency:	47-63 Hz
+5V:	15A
+3,3V:	18A
+5V & +3,3V combined:	90W
+12V 1:	54A
+12V 2:	N/A
+12V 1 & +12V 2 combined:	N/A
+12V 3:	N/A
+12V 4:	N/A
+12V 3 & +12V 4 combined:	N/A
P.F.:	>0,9
-12V:	0,3A
+5VSB:	3,0A
Maximum Load:	650W

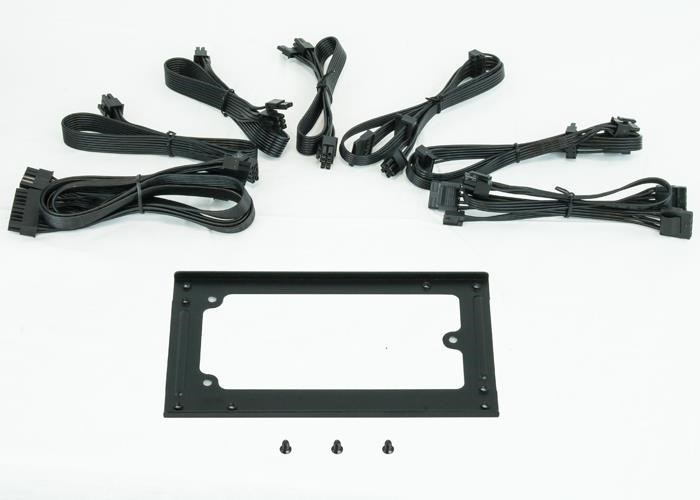

Modular cable

20+4PIN ATX:	1
SATA:	4
MOLEX:	3
Floppy:	1
4PIN 12V:	-
8PIN 12V:	-
8PIN (4+4) 12V:	1
6PIN PCIe:	-
8PIN (6+2) PCIe:	2

Features

Spezification:	ATX 12V 2.3
Form factor:	SFX
Efficiency:	> 90%
Dimension (DxWxH):	100 mm x 125 mm x 64 mm
PFC:	Active PFC (0,9)
Fan:	80mm silent fan
Security:	UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) OCP (Over Current Protection) OTP (Over Temperature Protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection)
Warranty:	24 Month

.
, ,

Formát zdroje:SFX

Konektory:PCIe 8-pin

Konektory:FDD

Konektory:Molex

Konektory:SATA 15-pin

Konektory pro základní desku:ATX 24-pin

Konektory pro základní desku:EPS 8-pin

Efektivita zdroje:80 Plus Gold

Modulární kabeláž:Ano

Výkon zdroje (W):650
