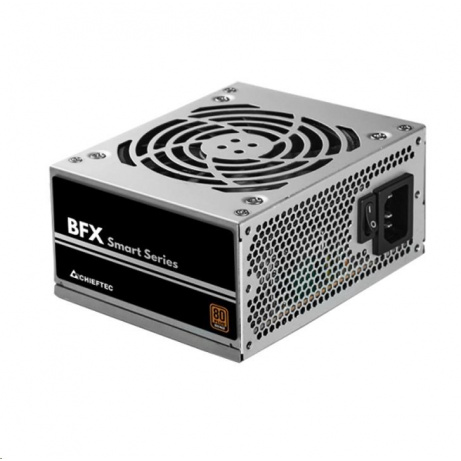

CHIEFTEC zdroj SFX Smart Series, BFX-350BS, 350 W, 80+ Bronze

Name: CHIEFTEC zdroj SFX Smart Series, BFX-350BS, 350 W, 80+ Bronze
Brand: Chieftec
SKU: i8_1022657
Price: 1266 CZK
Availability: InStock

-0.8%

Výrobce:Chieftec

Kód produktu:i8_1022657

Part number:BFX-350BS

EAN:753263077486

Záruka:24 Měsíc(ů)

Dostupnost:

k odeslání: 5 ks

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

SMART SERIES

80 PLUS® Bronze certified efficiency
DC-to-DC technology
OCP and OTP Protection
Long Life 9cm fan

TECHNICAL SPECIFICATIONS

Model	Smart 350 W
Article no.	BFX-350BS
EAN code	0753263077486
Weight (wthout/with package)	1 kg / 1.3 kg
AC input	100 - 240 V / 5.0A
Frequency	47 - 63 Hz
+5V	18.0 A
+3.3 V	18.0 A
+5 V & +3.3 V combined	110 W
+12 V1	29.16 A
+12V2	-
+12V1, +12V2 combined	349.92 W
P.F.	>0.9
-12 V	0.3 A / 3.6 W
+ 5VBS	2.5 A / 12.5 W
Maximum Power	350 W
Connectors
20+4 PIN ATX	1
8 PIN EPS (4+4)	1
8 PIN PCIe (6+2)	1
SATA	3
MOLEX	2/1
Cable length (mm)
20+4 PIN ATX	350
8 PIN EPS (4+4)	350
8 PIN PCIe (6+2)	350
SATA	3 x 250
MOLEX / FLOPPY	2 x 150 / 150
Features
ATX12V Version	ATX 12V 2.3
Efficiency	80+ Bronze
Dimension (D x W x H)	100 x 125 x 64mm
PFC	Active PFC (0,9)
Fan	90 mm silent fan
Security	AFC (Automatic Fan speed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over-temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection)
Warranty	24 Months

Formát zdroje:SFX

Konektory:Molex

Konektory:SATA 15-pin

Konektory:PCIe 8-pin

Konektory:FDD

Konektory pro základní desku:ATX 24-pin

Efektivita zdroje:80 Plus Bronze

Modulární kabeláž:Ne

Výkon zdroje (W):350
