CHIEFTEC zdroj SteelPower Series 650W, BDK-650FC, 80+ Bronze

Name: CHIEFTEC zdroj SteelPower Series 650W, BDK-650FC, 80+ Bronze
Brand: Chieftec
SKU: i8_1022660
Price: 2251 CZK
Availability: OutOfStock

Výrobce:Chieftec

Kód produktu:i8_1022660

Part number:BDK-650FC

EAN:753263077424

Záruka:60 Měsíc(ů)

Dostupnost:

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

SteelPower SERIES

80 PLUS® Bronze certified efficiency
Fully modular cable management
Half-bridge LLC converter with DC-to-DC technology
Premium Japanese capacitors

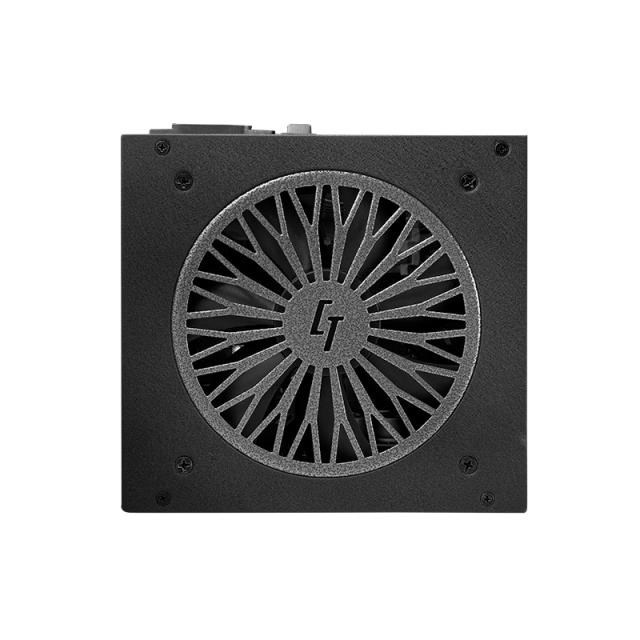

FDB 12cm fan

TECHNICAL SPECIFICATIONS

Model	Steel Power
Article no.	BDK-650FC
EAN code	0753263077424
Weight (without/with package)	1.65kg / 2.2kg
AC input	100-240V / 8.0A
Frequency	47 - 63Hz
+5V	20.0A
+3.3 V	20.0A
+5 V & +3.3 V combined	110W
+12 V1	54.0 A
+12V2	-
+12V1, +12V2 combined	648W
P.F.	>0,9
-12 V	0,3A / 3,6W
+ 5VBS	2,5A / 12,5W
Maximum Power	650W
Connectors
20+4 PIN ATX	1
8 PIN EPS (4+4)	2
8 PIN PCIe (6+2)	4
SATA	6
MOLEX	3/1
Cable length (mm)
20+4 PIN ATX	650
8 PIN EPS (4+4)	600/150
8 PIN PCIe (6+2)	2 x 500/150
SATA	2x 500/150/150
MOLEX / FLOPPY	500/150/150/150
Features
ATX12V Version	ATX 12V 2.3
Efficiency	80 PLUS® Bronze
Dimension (D x W x H)	140 x 150 x 86mm
PFC	Active PFC (0,9)
Fan	120mm FDB silent fan
Security	AFC (Automatic Fan speed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over-temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection)
Warranty	60 Months

.
, ,

Formát zdroje:ATX

Konektory:Molex

Konektory:SATA 15-pin

Konektory:PCIe 8-pin

Konektory:FDD

Konektory pro základní desku:EPS 8-pin

Konektory pro základní desku:ATX 24-pin

Efektivita zdroje:80 Plus Bronze

Modulární kabeláž:Ano

Výkon zdroje (W):650
