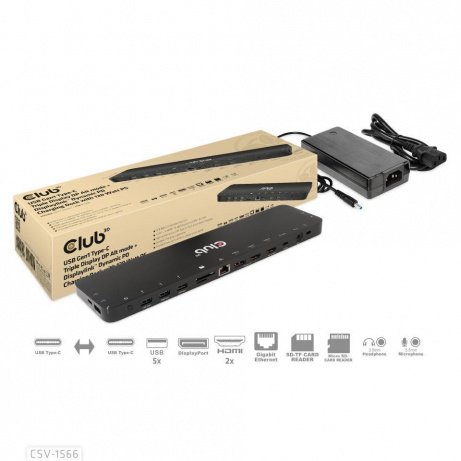

Club3D Dokovací stanice USB-C, Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS
USB Gen1 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS

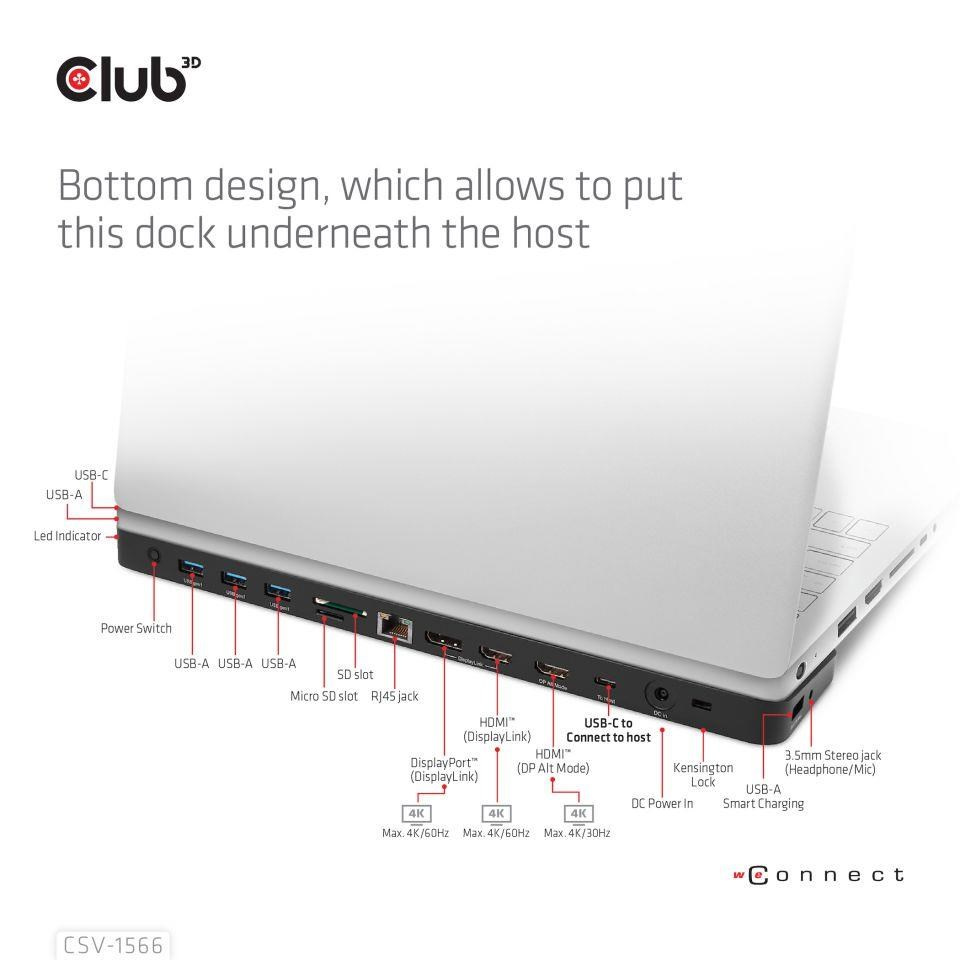

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio,video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile device(Apple,samsung phones, pads,etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.
- Support DP1.2 Alt mode and Displaylink™/ USB mode
- Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter)to be multiple video,data and power ports
- Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and window system
- HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz
- HDMI™ 2 (USB mode) supports max 4K/60Hz
- DP™(USB mode) support max 4K/60Hz
- Support DP++
- Support smart charging with max 5V/2.4A
- Support Gigabit Ethernet to get access to super fast network
- Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously
- Support audio in and out

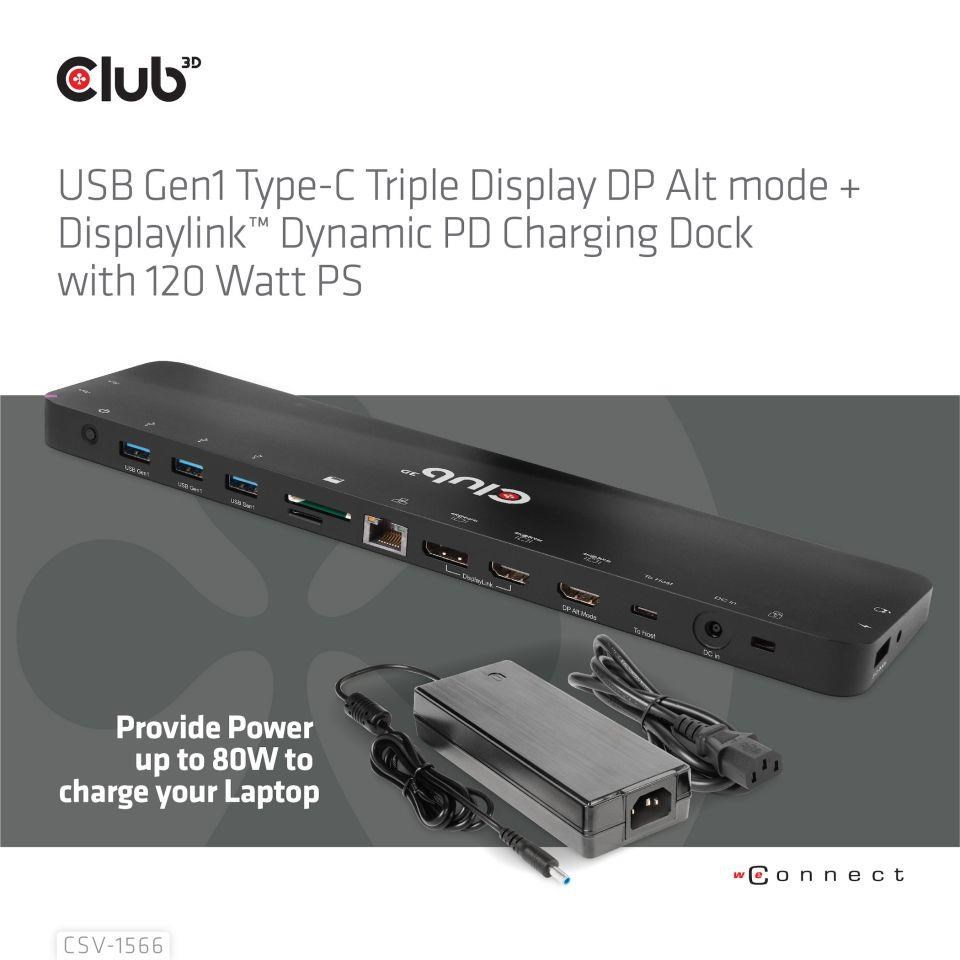

- Support max 120W DC power in and bypass 80W to host
- Short-circuit, over-current, over-voltage protection
TECHNICAL SPECIFICATIONS
| Available Interfaces | Input: - 1x USB Gen2 Type-C Female for connecting to Host Output: - 1x USB Gen1 Type-C Female (data) - 4x USB Gen1 Type-A Female - 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. - 1x HDMI™ Female (DP Alt Mode) - 1x HDMI™ Female (USB Mode)DisplayLink™ - 1x DP™ Female (USB Mode)DisplayLink™ - 1x SD Female - 1x TF Female - 1x RJ45 - 1x 3.5 mm Phone Socket (Microphone and headphone) - 1x DC Power 20.5V |
| OS Support | - Microsoft Windows® 10 - Mac OSX® Supports SST mode Only |
| In the box | - CSV-1566 Docking Station - PowerSupply Input: 100-110/240VAC, Output: up to 120W, Various Power plugs depending on Country (Specify on order) - USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft - Quick Install Guide |
| Other info | - Box size: 36 x 11.5 x 6.5 cm / 14.17 x 4.53 x 2.56" - Device size: 30.4 x 7.7 x 1.8 cm / 11.97 x 3.03 x 0.7" - USB host Cable length approx.: 1m / 3.28 ft - Device Weight: 358 gr / 12.63oz - USB Cable Weight: 44 gr / 1.55 oz - Powersupply weight: depending on power plug ? 580 gr / 20.46 oz - Box Weight: 168gr. / 5.92 oz. - LDPE Bag Weight: 5 gr / 0.18 oz - Total Weight: ? 726gr / 25.06 oz - Meets ROHS, FCC, and CE EMI requirements |
