Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)
Výrobce:Club 3D
Kód produktu:i8_795177
Part number:CSV-7200H
EAN:8719214471996
Záruka:24 Měsíc(ů)
Dostupnost:
skladem k odeslání Zboží je na centrálním skladu dodavatele, připraveno ihned k expedici v případě objednávky do 16:30
Ihned
k odeslání: 2 ks
Popis
Parametry produktu

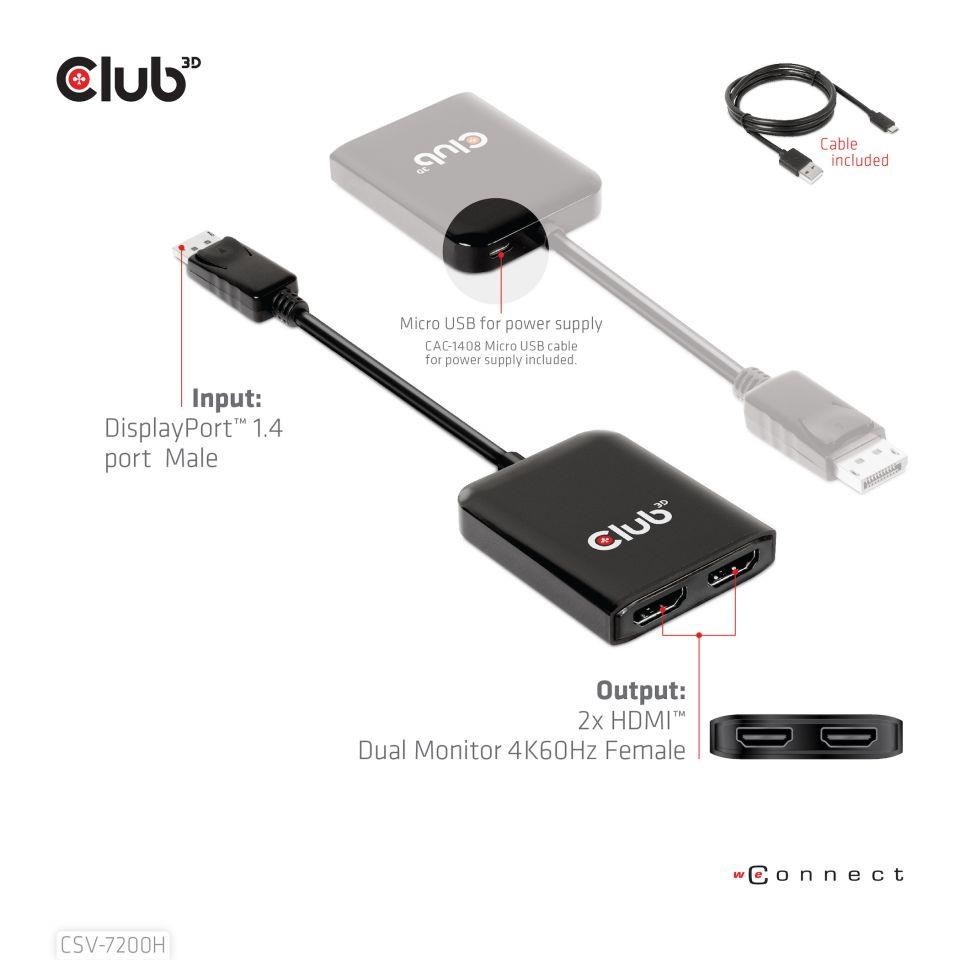

Multi Stream Transport (MST) Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F
The Club 3D CSV-7200H Multi Stream Transport(MST)Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allow you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It’s the perfect solution for host devices which feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
- Compliant with: DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz
* Supports HDCP 1.4 and HDCP 2.2 Content protection - Supports main link rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
- Supports up to Two HDMI™ 4K60Hz ports
- Supported output resolutions :
- up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2)
- 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ(DP1.2)
* Supports transmission of audio and video signals
- Works with AMD*, Nvidia™ and Intel™ HD Graphics solutions
* Plug and Play - no driver needed - Functionality may vary per GPU and OS
* USB Bus Powered
TECHNICAL SPECIFICATIONS
OS Support | - Windows10 - Mac OSX 10.14.4 or above (limited to only mirror mode) |
In the box | - CSV-7200H, MST-Hub DisplayPort™ 1.4 to HDMI™ Dual 4K60Hz - 1x external Power cable USB Type-A to Micro USB M/M |
Available Interfaces | Input: • 1x DisplayPort™ 1.4 Male for connecting to Host • Micro USB Female for External Power Output: • 2x HDMI™ Female for connecting to Displays |
Box size | 6x24x3.5cm / 2.36 x 9.45 x 1.38" |
Device size | 6 x 4.9 x 1.13 cm / 2.36 x 1.93 x 0.44" |
Total length Device | 20 cm/ 7.87" |
Box Weight | 28 gr / 0.99 oz |
Device Weight | 50 gr / 1.76 oz |
CAC-1408 Cable Weight | 26 gr/ 0.95 oz |
LDPE Bag Weight | 5 gr / 0.17 oz |
Total Weight | 109 gr / 3.87 oz |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
., ,
Druh IO zařízení:MST hub
Provedení:Externí
