FRACTAL DESIGN skříň Meshify 2 Mini Black TG Dark Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mATX

Name: FRACTAL DESIGN skříň Meshify 2 Mini Black TG Dark Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mATX
Brand: Fractal Design
SKU: i8_1208109
Price: 3597 CZK
Availability: OutOfStock

Výrobce:Fractal Design

Kód produktu:i8_1208109

Part number:FD-C-MES2M-01

Záruka:24 Měsíc(ů)

Dostupnost:

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

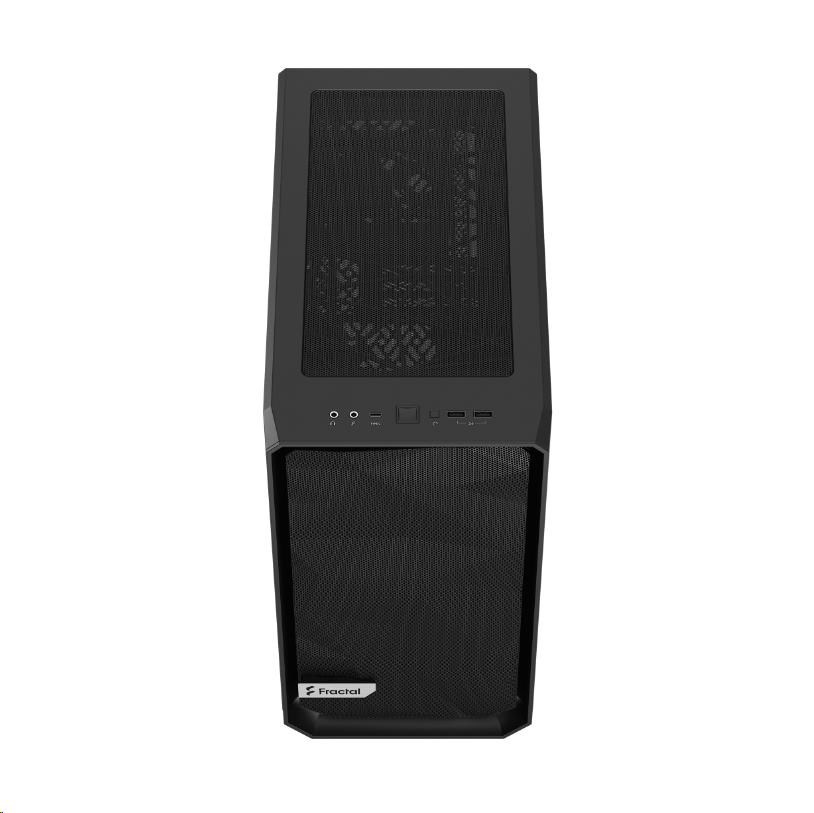

Meshify 2 Mini

The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top.

Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
Open interior layout creates a smooth airflow path from front intake to rear exhaust

TECHNICAL SPECIFICATIONS

3.5"/2.5" drive mounts	2 (included)
Dedicated 2.5" drive mounts	4 (2 included)* max 8 mm drive height for mounts behind motherboard plate
Expansion slots	4
Front interface	1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts	7x 120 mm or 4x 140 mm
Front fan	3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
Top fan	2x 120/140 mm
Rear fan	1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan	1x 120 mm (requires removal of HDD cage)
Dust filters	Top, front and bottom
Cable routing space	15-25 mm
Cable routing grommets	Yes
Fixed cable straps	Yes
Tool-less push-to-lock	Top, front and side panels
Captive thumbscrews	HDD, SSD and, PSU brackets
Left side panel	Tempered glass
Right side panel	Steel
Compatibility
Motherboard compatibility	mATX / DTX / Mini-DTX / Mini ITX
Power supply type	ATX
Front radiator	Up to 240/280 mm
Top radiator	Up to 240 mm
Rear radiator	120 mm
Bottom radiator	120 mm (without HDD Cage)
PSU max length	165 mm recommended with HDD cage (200 mm without HDD cage)
GPU max length	331 mm, 306 mm with front fan
CPU cooler max height	167 mm
Dimensions
Case dimensions (L x W x H)	396 x 205 x 406 mm
Case dimensions w/o feet/protrusions/screws	384 x 205 x 390 mm
Net weight	6,62 kg
Package dimensions (L x W x H)	457 x 277 x 462 mm
Gross weight	7,68 kg

.
, ,

Provedení skříně:Midi Tower

Počet pozic 3.5" (HDD):2

Počet pozic 2.5" (SSD):4

Vybavení PC skříně:Bez integrovaného zdroje

Vybavení PC skříně:Přední USB panel

Vybavení PC skříně:Přední Audio panel

Bočnice:Prosklená
