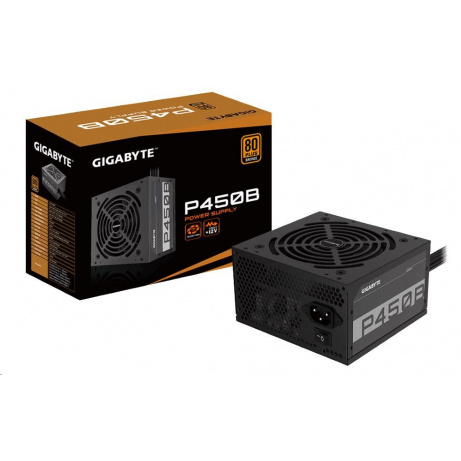

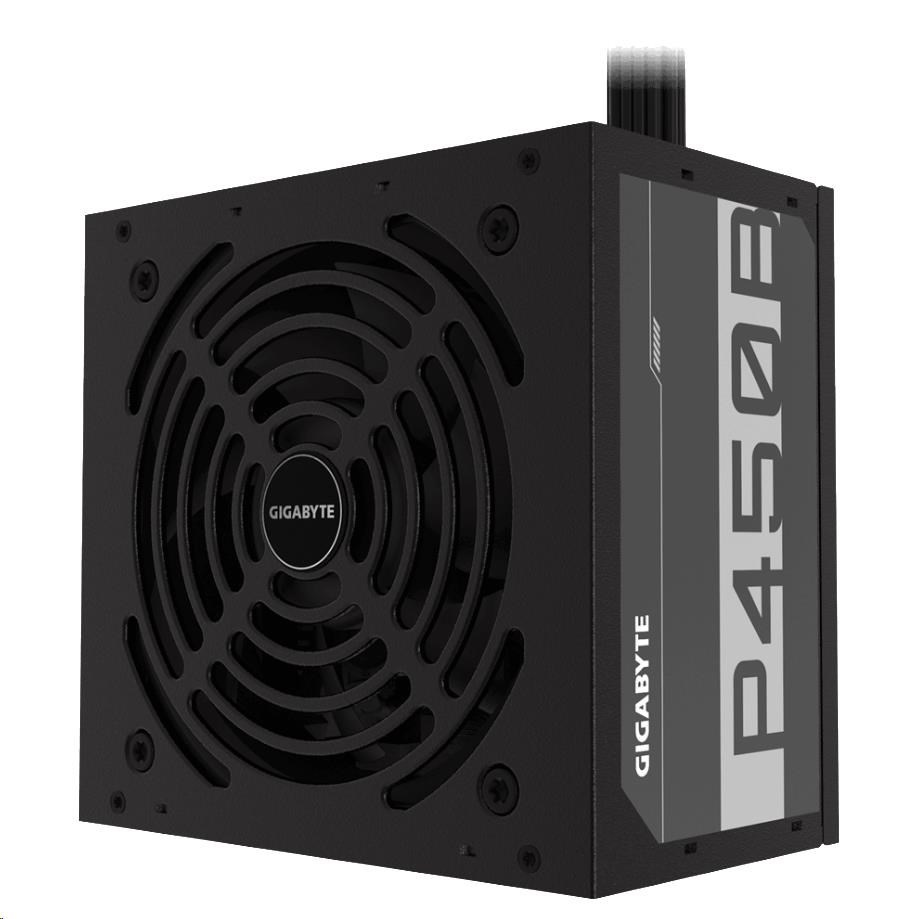

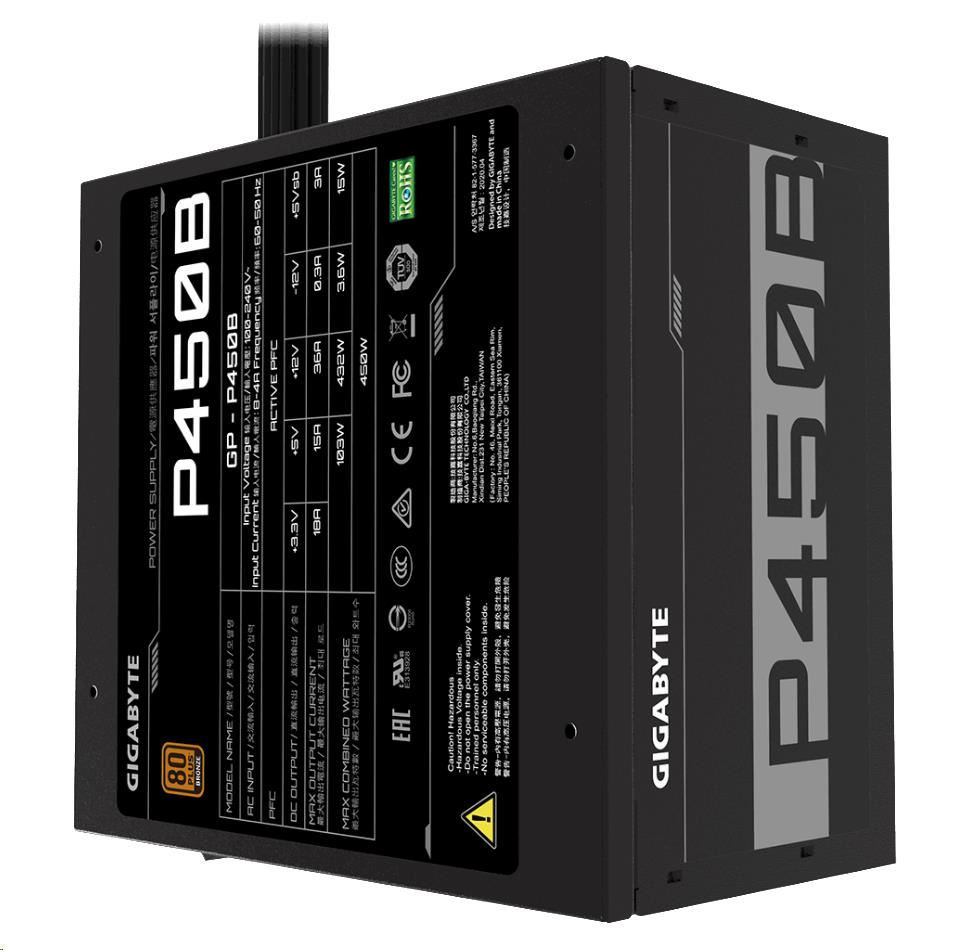

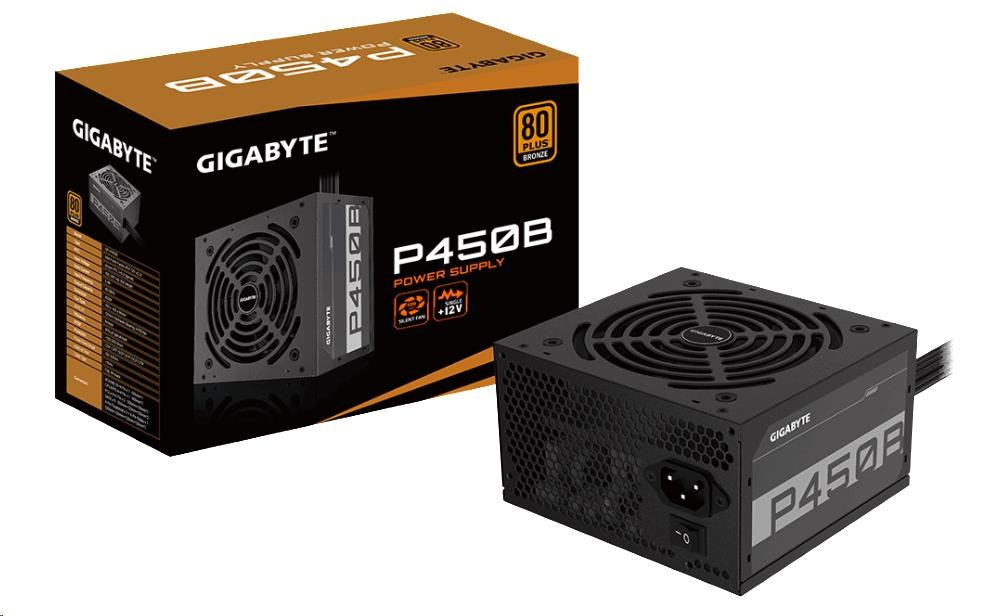

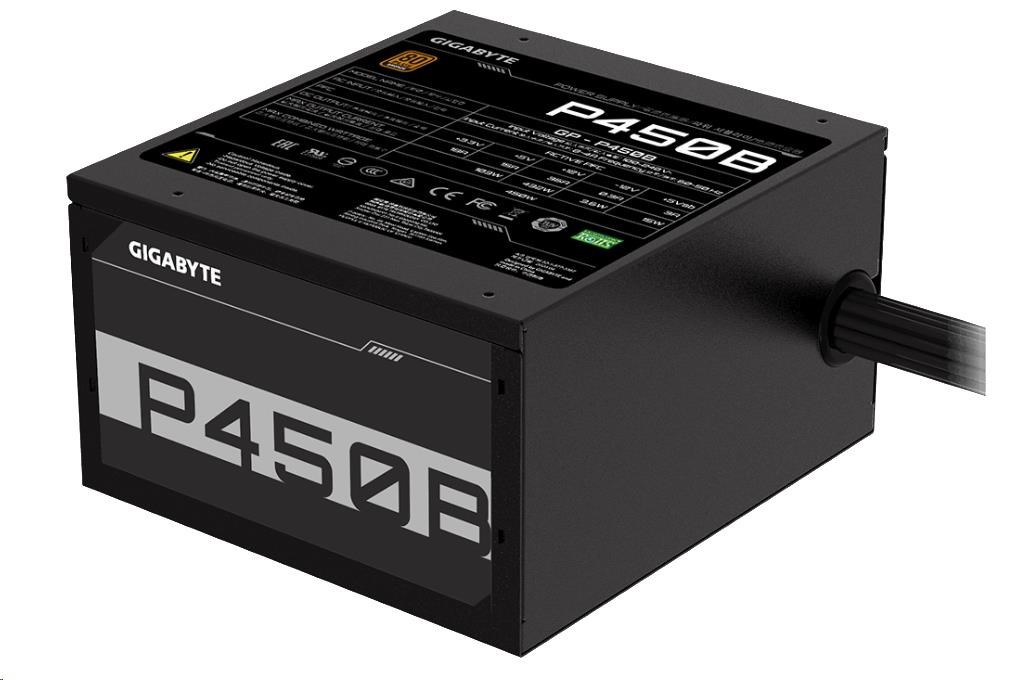

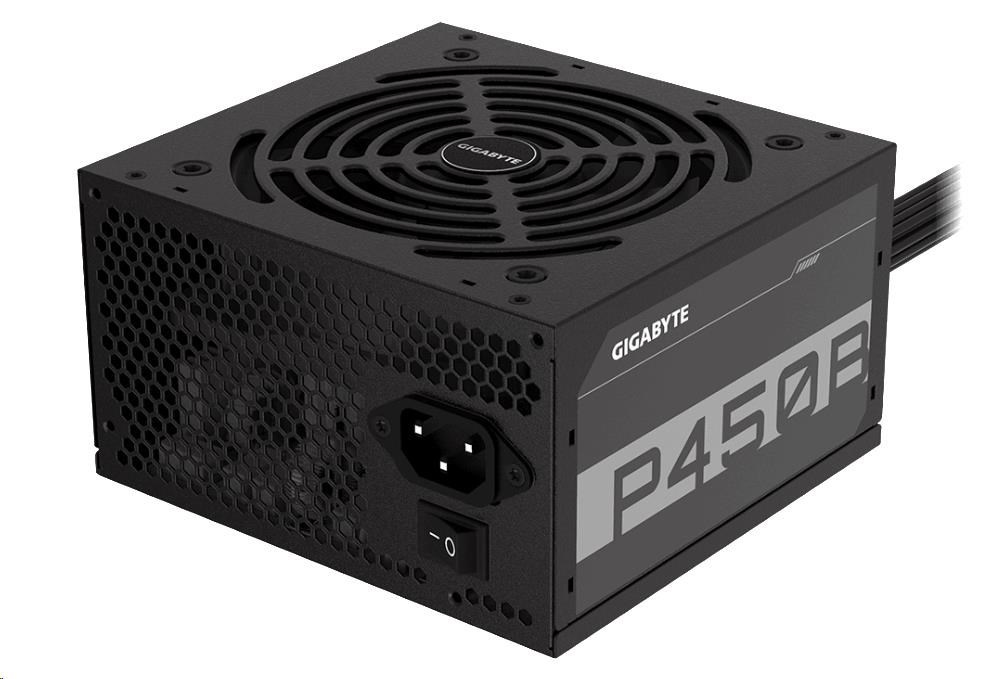

P450B

• 80 PLUS Bronze certified

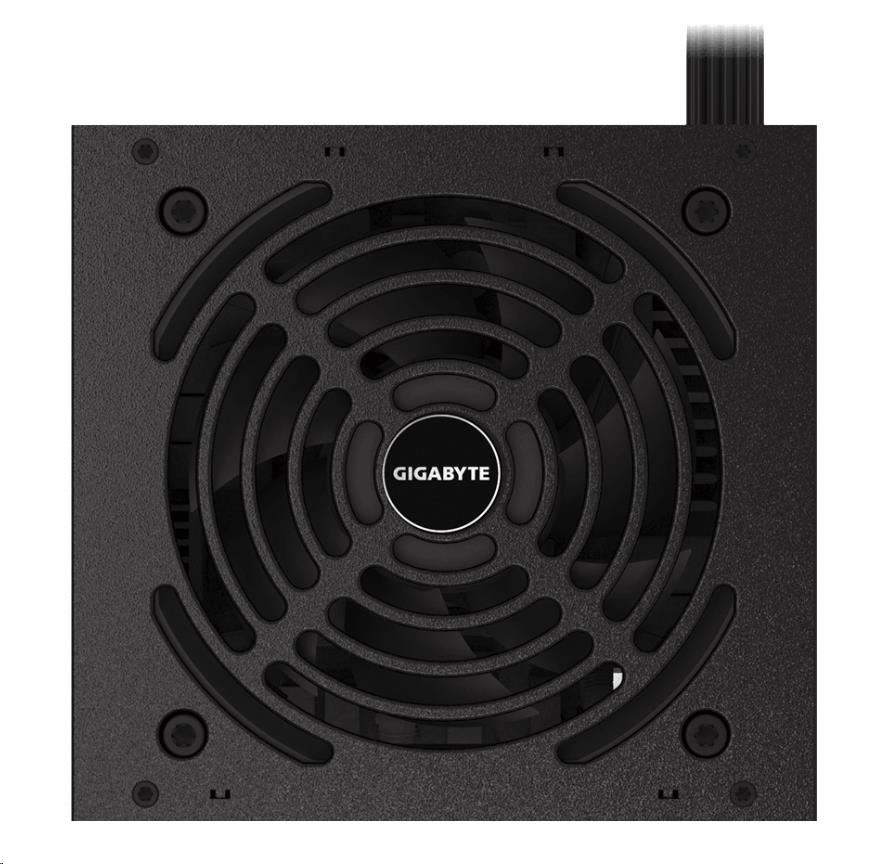

• 120mm Silent Hydraulic Bearing (HYB) Fan
• Reliable flat cable
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty (Adjusted according to different regions)

TECHNICAL SPECIFICATIONS

Model	P450B
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	8A-4A
Input Frequency	50-60 Hz
Output Capacity	450W
Dimension	D150 x W140 x H86 mm
Fan Type	1?20 mm Hydraulic Bearing (HYB) Fan
Efficiency	Up to 85% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	1?00-500ms
Connectors	ATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1

.
