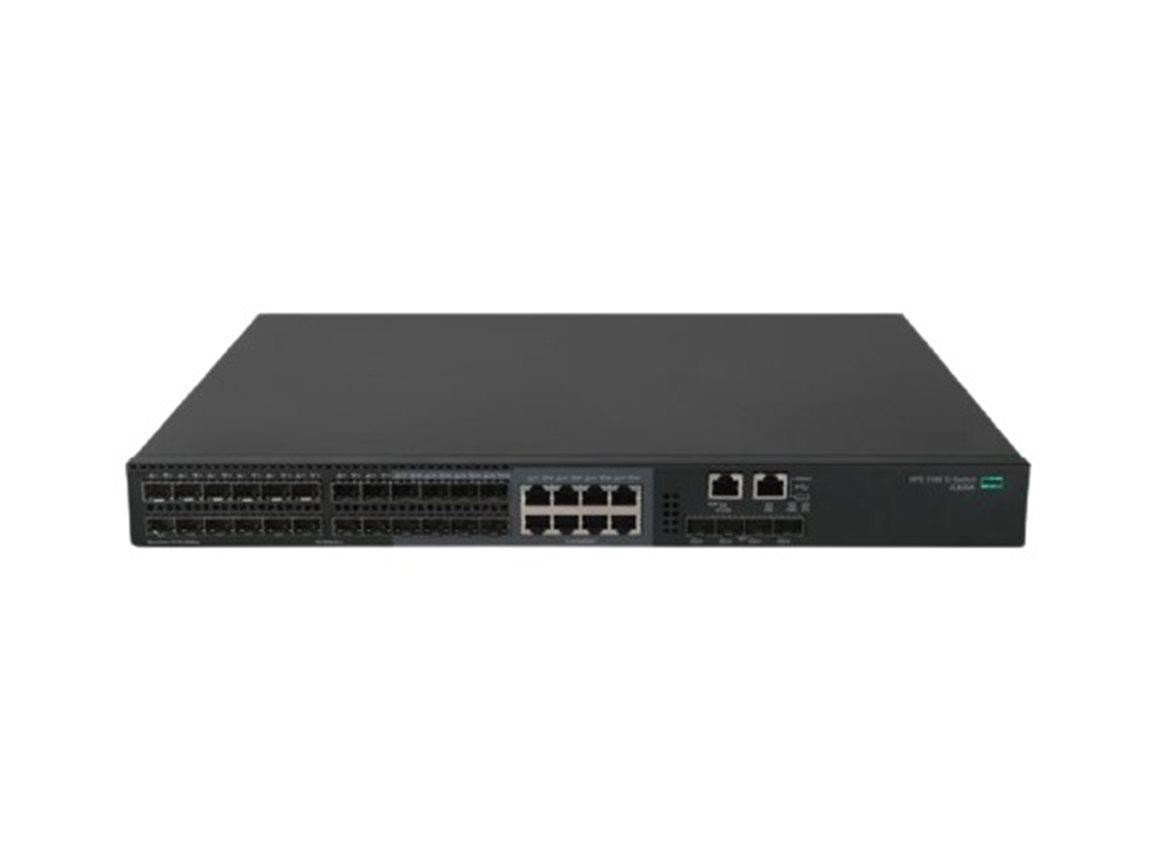

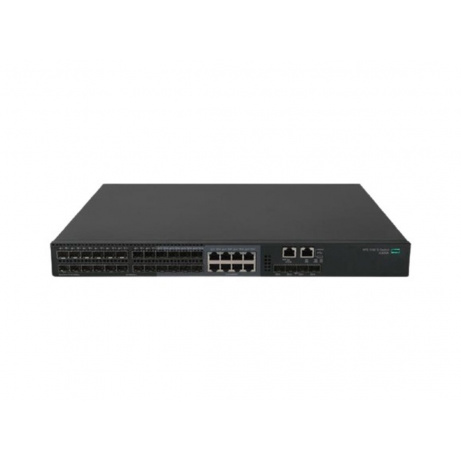

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140
HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140
HPE FlexNetwork 5140 24G SFP 4SFP+ EI Switch (JL826A) | ||
I/O ports and slots | 16 SFP 100/1000 Mbps ports | |
8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports | ||
4 SFP+ fixed 1000/10000 SFP+ ports | ||
Additional ports and slots | 1 RJ-45 serial console port | |
Power supplies | 2 power supply slots 1 minimum power supply required (ordered separately) | |
Physical characteristics | Dimensions | 17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height) |
Weight | 13.23 lb (6kg) | |
Memory and processor | 512 MB SDRAM, 256 MB flash; | |
Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) | |
Performance | IPv6 Ready Certified | |
1000 Mb Latency | < 5 µs | |
10 Gbps Latency | < 3 µs | |
Throughput | 95 Mpps | |
Routing/Switching capacity | 128 Gbps | |
Routing table size | 1024 entries | |
MAC address table size | 16384 entries | |
Environment | Operating temperature | 23°F to 113°F (-5°C to 45°C) |
Operating relative humidity | 10% to 90%, noncondensing | |
Non-operating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | |
Non-operating/Storage relative humidity | 5% to 95%, noncondensing | |
Acoustic | Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779 |
Electrical characteristics | Frequency | 50/60 Hz |
Maximum heat dissipation | 102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max. | |
Voltage | 100 - 240 VAC -48 to -60 VDC | |
Current | 5 A | |
Maximum power rating | 60 W | |
Idle power | 30 W | |
Notes: | - Idle power is the actual power consumption of the device with no ports connected. - Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. - Power Ratings for AC Power Supply indicated above. - For DC input power, Idle Power is 38W and Max is 68W. - DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply. | |
Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance | |
Emissions | FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 | |
Immunity | Generic | EN 55024 |
ESD | EN300 386 | |
Management | IMC - Intelligent Management Center; SmartMC;command-line interface; Web browser; SNMP Manager |
, ,
