RB951Ui-2HnD

OVERVIEW

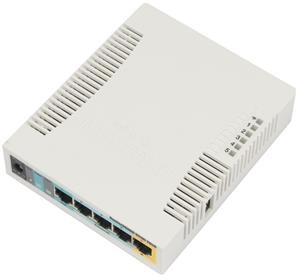

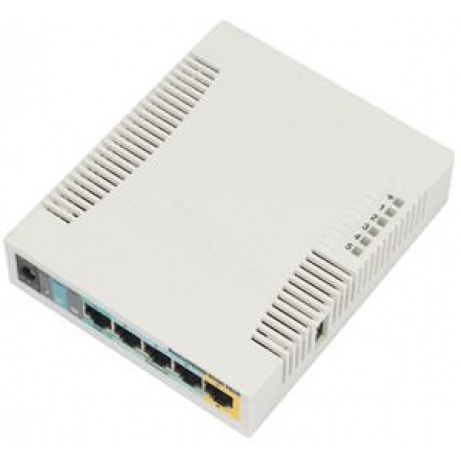

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

SPECIFICATIONS
Product code
• RB951Ui-2HnD

CPU speed
• 600MHz

CPU cores
• 1

RAM
• 128

LAN ports
• 5

Gigabit
• No

MiniPCI
• 0

Integrated Wireless
• Yes

Wireless standards
• 802.11b/g/n

USB
• 1

Power Jack
• Yes

802.3af support
• No

PoE
• 8-30V DC on Ether1

Voltage Monitor
• No

PCB temperature monitor
• No

CPU temperature monitor
• No

Dimensions
• 113x138x29mm

Operating Systém
• RouterOS

Temperature range
• -20C +50C

RouterOS License
• L4

Antenna gain
• 2.5dBi

Current Monitor
• No

TX power
• 30dBm

Max Power consumption
• Up to 7W

SFP ports
• 0
