OVERVIEW

As a leading provider of network equipment for SMBs, NETGEAR understands the importance of a reliable and high performance network to SMB customers. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10G Smart Managed Switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost.

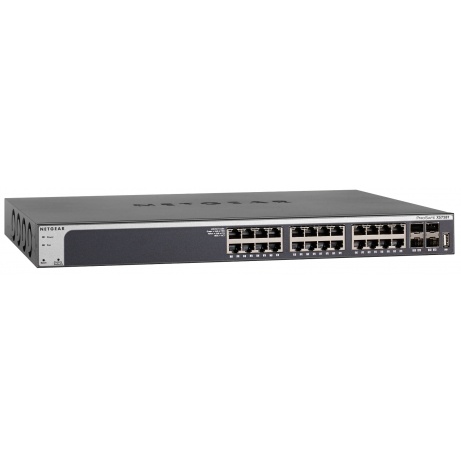

NETGEAR's ProSAFE® XS712T and ProSAFE® XS728T are powerful Smart Managed Switches that come with either 12 or 24 10-Gigabit Copper ports and either 2 Combo SFP+ (XS712T) or 4 additional Dedicated SFP+ ports (XS728T) for 10G Fiber links. NETGEAR's 10G Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the "center of a small business network" or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10G NETGEAR ProSAFE® M7100/M7300 Fully Managed Switch on one end and extending the 10G connections to the edge.

NETGEAR Warranty
*This product is backed by a NETGEAR ProSAFE® Lifetime Hardware Warranty.
*Lifetime Next Business Day Hardware Replacement. Click here ( ) for coverage, availability and terms and conditions.
*ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
*ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

TECH SPECS

Product Number
*XS728T
10-Gigabit copper ports
*24 10GBase-T copper
SFP ports
*4 SFP+ 1000/10GBase-X fiber ports (dedicated)
Buffer size
*3MB
MAC address database size
*16K
VLAN (# supported)
*512
Number of LAGs & number of members
*8 LAGS with max 8 members in each LAG (LACP)
Number of priority queues
*8
Access Control Lists (ACLs)
*164 shared for MAC, IP and IPv6 ACLs
IPv4 Static routes
*64
IPV6 Static routes
*64
Power supply
*Internal 100-240VAC 50-60Hz
Max power consumption (Watts)
*173.3 W
Fan
*4
Acoustic Noise Level @25C (dBA)
*41.6 dBA
Operating Temperature
*0° to 50°C
MTBF (@ 25° C)
*514,977 hours
Electromagnetic compliance (A or B)
*Class A
Dimensions (W x D x H)
*440 x 310 x 43 mm
Weight
*5.04 kg

WEBSITE
*Technical specification: http://www.netgear.com/business/products/switches/smart/XS728T.aspx#tab-techspecs
, ,
