OVERVIEW

Inside or out, we’ve got your wireless 802.11 b/g/n devices covered.

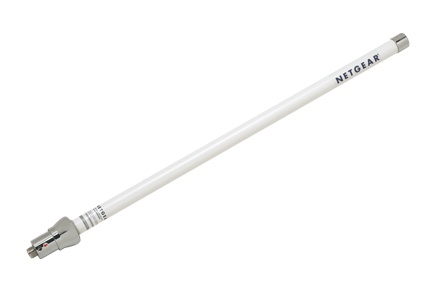

Optimal for medium range indoor or outdoor point to multi-point applications, the ProSAFE® 9DBI Omni-Directional antenna provides extended point-to-multi-point coverage for wireless 802.11 b/g/n devices.

NETGEAR Warranty
*This product is backed by a NETGEAR limited 1-year Hardware Warranty.
*http://www.netgear.com/about/warranty/
*ProSupport Lifetime 24x7 Advanced Technical Support. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

TECH SPECS

Product Number
*ANT2409
Wireless Signal
*IEEE 802.11g
Typical Application
*Indoor/outdoor
Maximum Outdoor Range*
*11.5 km
Frequency Range
*2400 - 2485 MHz
Gain**
*9 dBi
Beam Width
*Horizontal 360° Vertical 30°
Polarization
*Vertical
Operating Temperature
*-30o to 80o C (-22o to 176o F)
Dimensions
*625 x 75 x 56 mm
Weight
*0.9 kg
Connectors
*Antenna - Reverse N female
*Lightening Arrestor - Reverse N female
*Adapter - Reverse SMA
Package Contents
*Indoor/Outdoor 9 dBi Omni-directional
*Antenna - ANT2409 (cable required, sold separately)
*Wall and pole mount brackets and hanging materials
*One reverse N type to reverse SMA adapter
*2 m low-loss antenna cable (connection for lightening arrestor)
*Lightening arrestor
*Installation guide and Warranty/support card
Ordering Information (all regions)
*ANT2409-20000S
