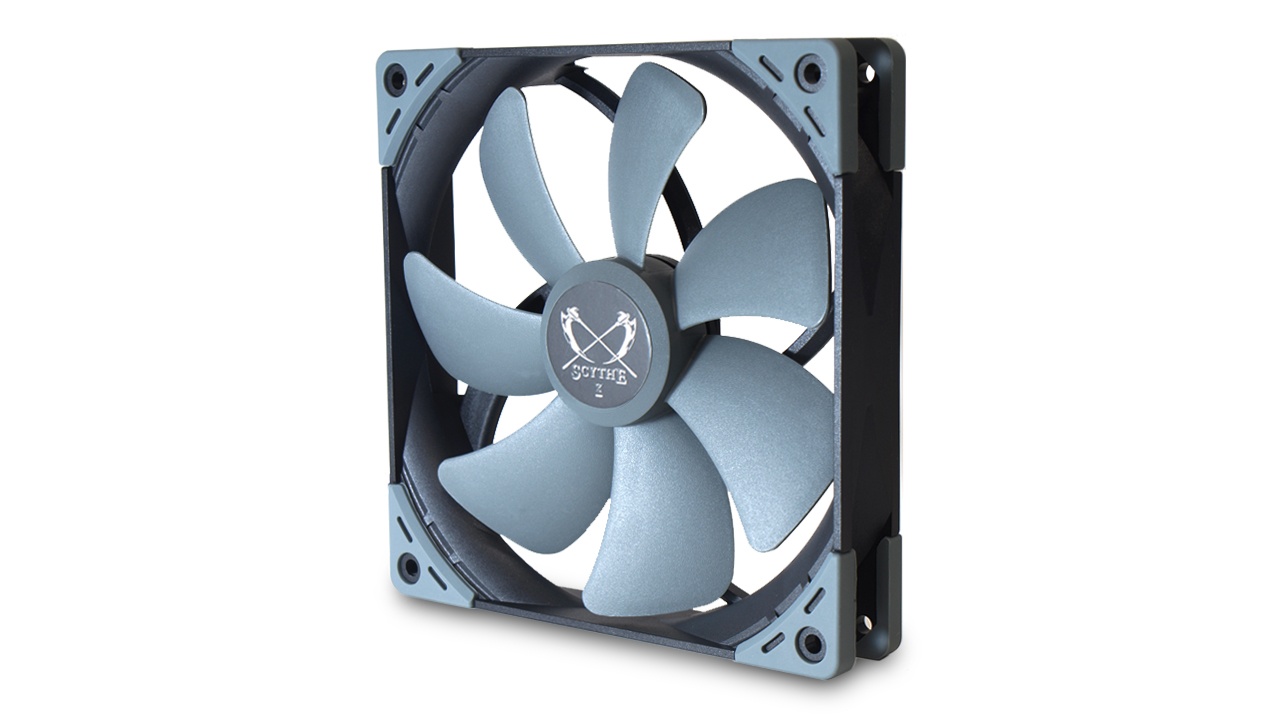

140mm čtvercový ventilátor "KAZE FLEX 140 SQUARE" 140x140x27 s PWM regulací 300-1200rpm a hlučností od 4,19 dBA
Ventilátor čtvercového typu 140 mm čtvercového typu (SQUARE / square)
Vysoce přesná utěsněná FDB ložiska
Vysoká trvanlivost a nízké tření jsou realizovány použitím vysoké slitiny s vysokou pevností a trvanlivostí pro ložiskovou část
Vysoce kvalitní mazání.

140mm square case fan "KAZE FLEX 140 SQUARE "
140mm square case fan of square type (SQUARE / square)
Sealed Precision FDB (High-precision sealed FDB)
Adopts a completely sealed bearing structure that eliminates the oil-filled cap.
This achieves a high holding capacity to minimize oil volatilization and leakage
Oil in the space between the rotating shaft and bearing High lubricating effect and quietness due to the fluid bearing structure that stores oil
High durability and low friction are realized by using a high alloy with high strength and durability for the bearing part
High quality lubrication that can withstand high temperatures of 200 to 250 ° C Uses oil.

Model number KF1425FD12S-P
JAN 4571225057545
size 140 × 140 × 27 mm thick
Rotation speed (PWM variable) 300 ± 200 to 1200 rpm ± 10%
Noise and air volume 4.19 to 19.4 dBA / 16.8 to 67.2 CFM
Static pressure 0.08 to 1.25 mmH2O / 0.78 to 12.26 Pa
Rated current 0.12 A
Drive voltage DC12V
rib None
weight 150 g
Fan connection PWM 4-pin
cable length Fan cable 30cm (can be extended up to 50cm)
bearing Sealed Precision FDB
MTBF 120,000 hours


By adopting a shock-absorbing rubber pad "shock-absorbing rubber pad", it excels in vibration absorption and fan stability.

Long life MTBF 120,000 hours long life

Extender cable specification
Fan cable is usually 30cm. Extendable up to 50cm with extension cable

Without rib

Accessories: Extender cable for fan, mounting screw

4-pin PWM connection automatically changes fan speed

140 × 140 × 27 mm thick

Package dimensions / weight
148 (W) × 215 (H) × 28 (D) mm · 220 g

Size original design 140mm square fan

Square type (SQUARE / square) 140mm square case fan "KAZE FLEX 140 SQUARE"
125mm pitch hole position
Please note that there is no compatibility with 120mm fan hole position
Sealed Precision FDB

High oil holding capacity that suppresses volatilization and leakage due to the completely sealed bearing structure with the oil sealing cap removed.
High lubrication effect and quietness are exhibited by the fluid bearing structure that stores oil in the space between the rotating shaft and the bearing. High-strength, high-durability high alloy is used for the bearing part to achieve low friction and long life.
Uses high-quality lubricating oil that can withstand high temperatures of 200 to 250 ° C
Shock absorbing rubber pad
Excellent vibration absorption and fan stability
Extender cable specifications¨
Fan cable can be extended up to 30cm normally and extension cable up to 50cm

accessories
Four mounting screws and fan extension cable (20cm) are included

package
148 (W) × 215 (H) × 28 (D) mm / 220 g
, ,
