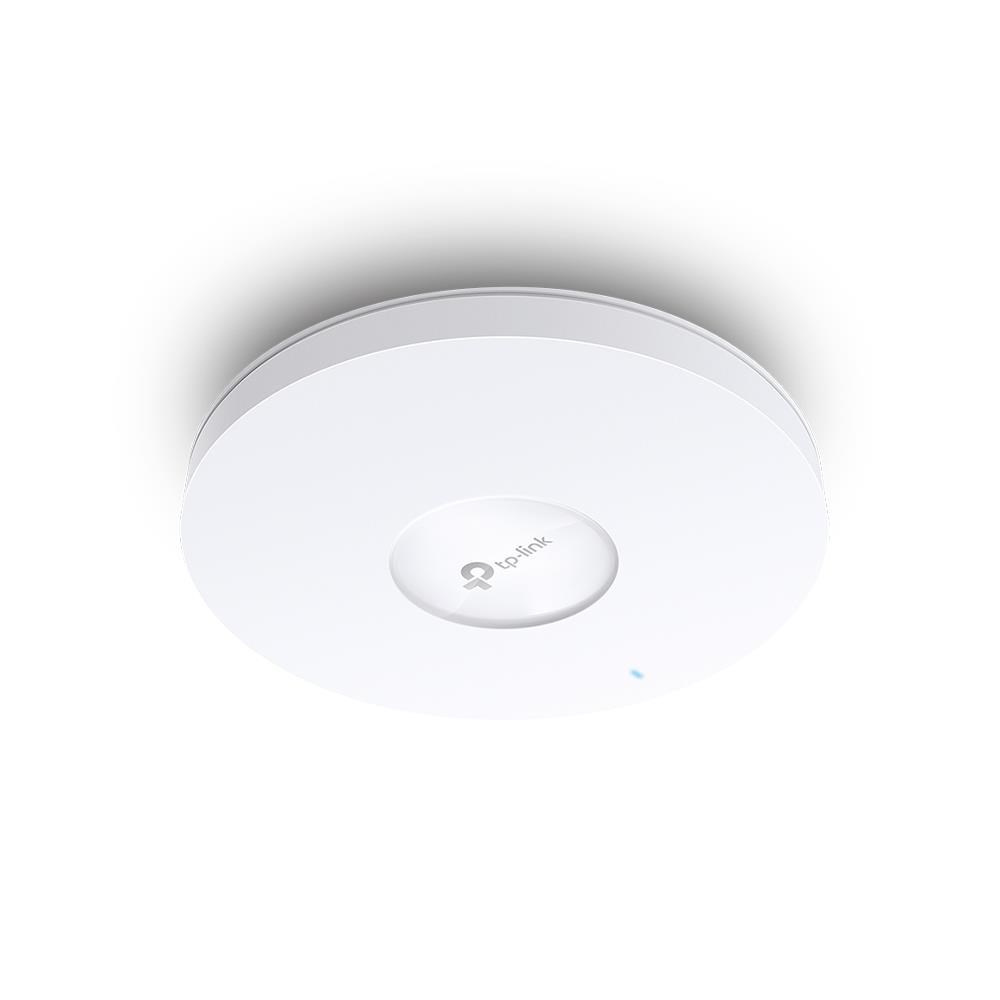

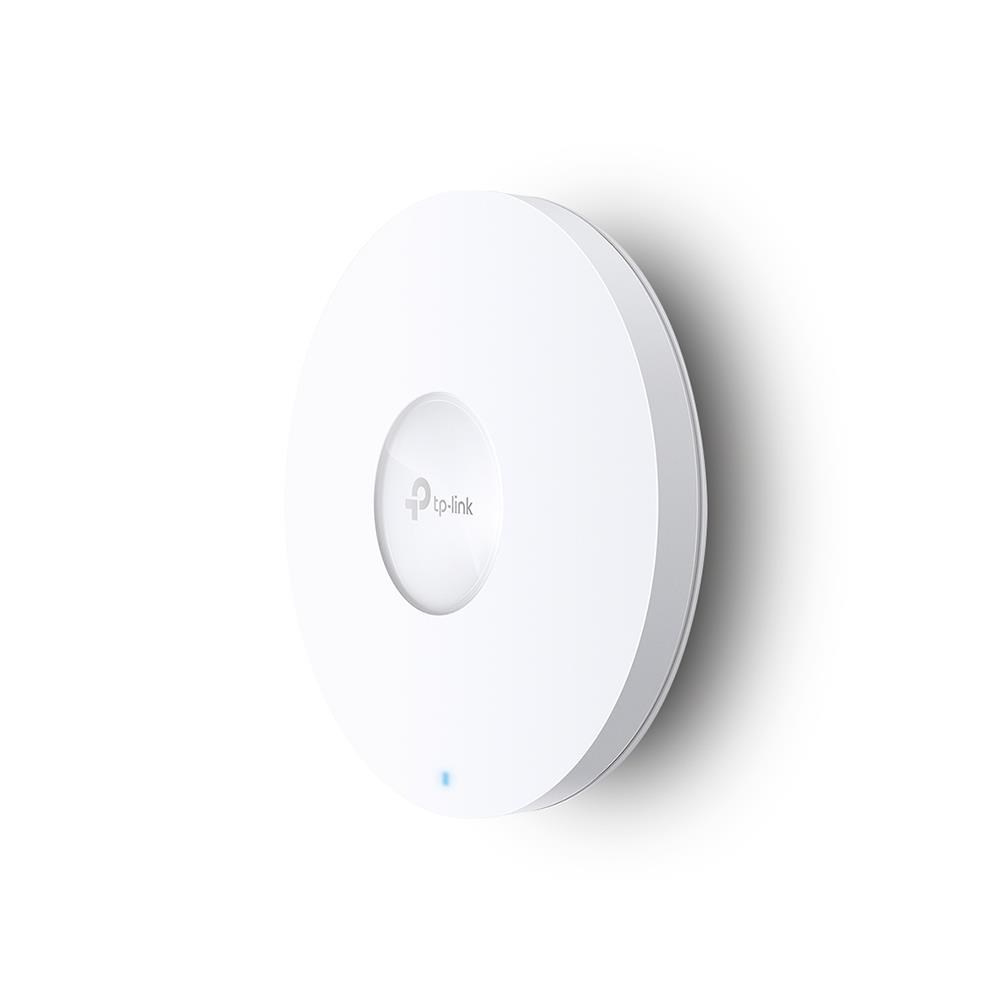

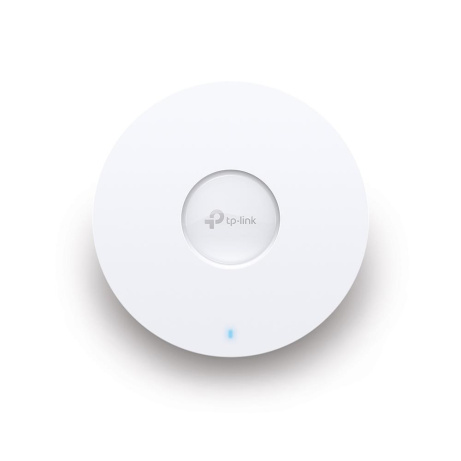

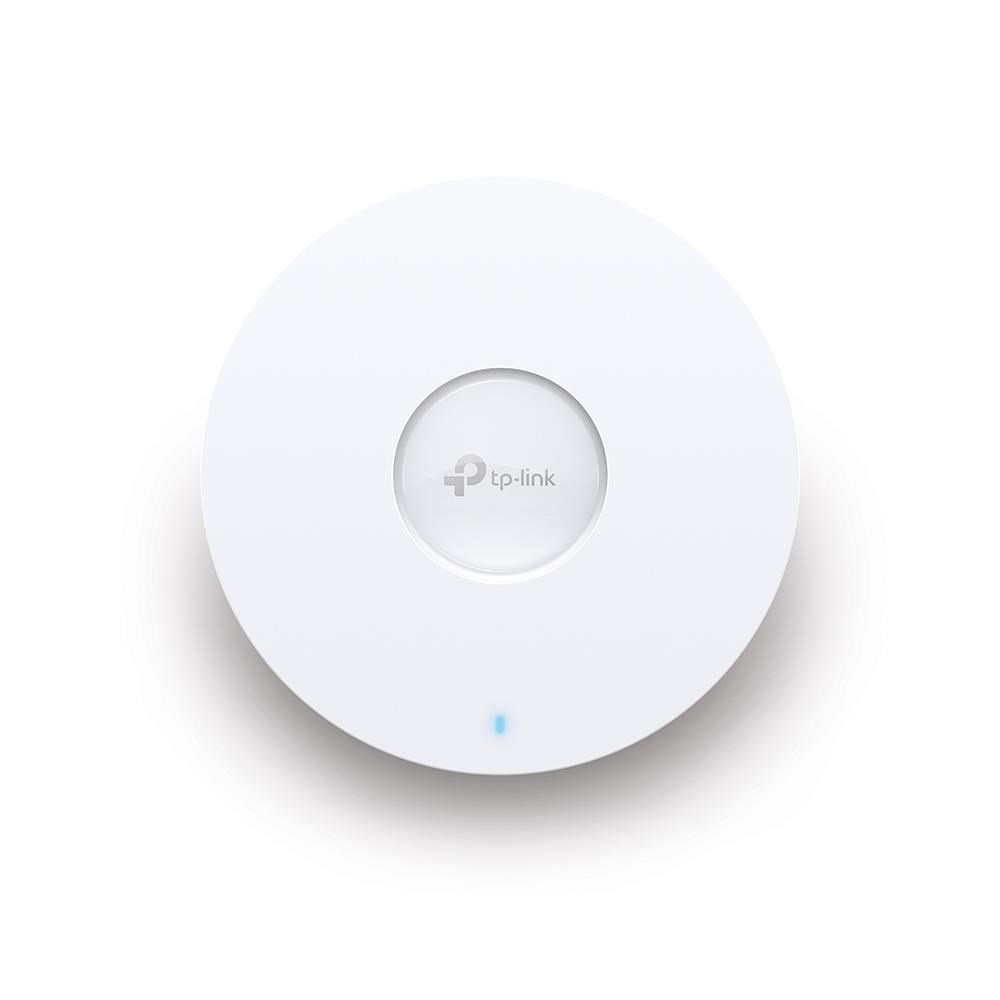

TP-Link EAP653 UR

Přístupový bod AX3000 WiFi 6 pro montáž na strop

• Velmi rychlé WiFi 6 rychlostí: - 2402 Mb/s na 5 GHz t+ 574 Mb/s na 2,4 GHz
• Bezdrátové pokrytí s mimořádným dosahem díky většímu počtu antén s vyšším vysílacím výkonem
• Podpora technologií WiFi 6, jako je HE160, 1024-QAM atd
• Pokročilé funkce: Omada Mesh, bezproblémový roaming atd
• Napájení PoE+: Podporuje standard 802.3at PoE+ i stejnosměrný proud (adaptér není součástí dodávky)
• Velmi tenký design: Elegantní design ?16cm × 3,3cm přináší větší agilitu.
• Integrace s platformou Omada SDN pro centralizovanou správu

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-access-point/eap653-ur/

Technické specifikace

• FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz)
Note: DC adapter is not included in the package, and is sold separately.

HARDWARE FEATURES
Interface	1× Gigabit PoE+ Port
Button	Reset
Power Supply	• 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE
Power Consumption	• EU: 14.2 W • US: 15.5 W
Dimensions ( W x D x H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi

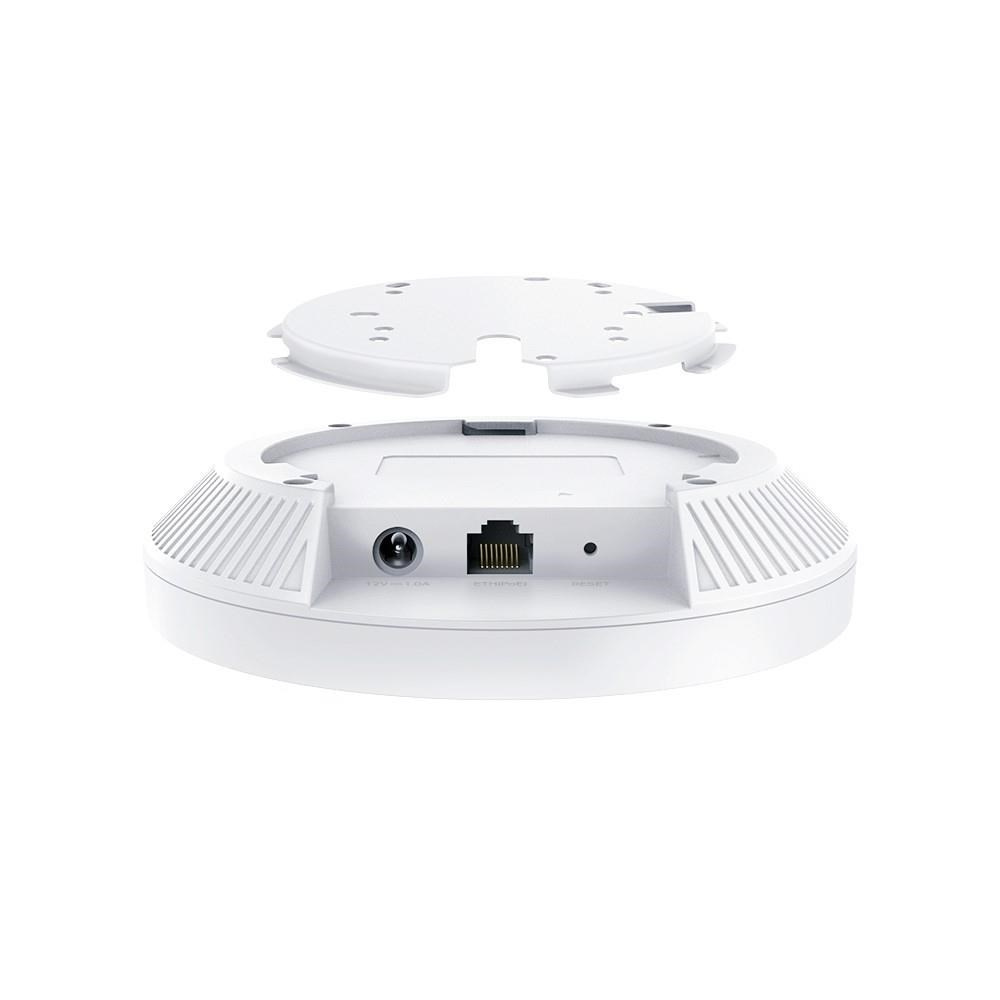

Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
WIRELESS FEATURES
Coverage	140?(1500 ft2)***
Concurrent Clients	250+**
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps†
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP)
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

.
